| ₹ 59666.56 includes GST and import duties. | |
| B2B customers can avail ₹ 9099.15 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

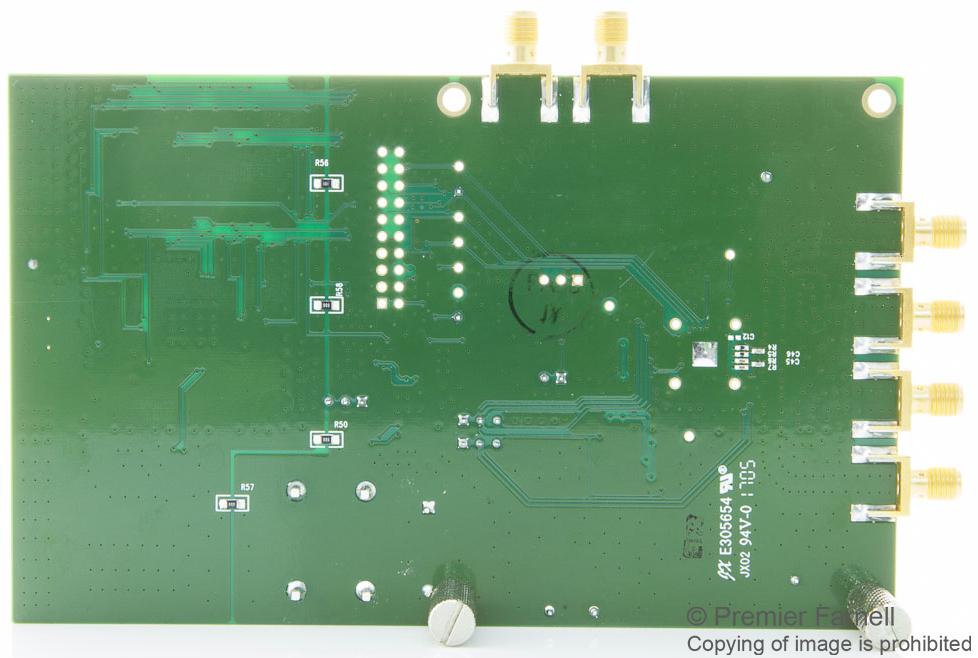

The MAX2870EVKIT# is an evaluation kit for the MAX2870 23.5MHz to 6000MHz fractional/integer-N synthesizer/VCO. The MAX2870 is an ultra-wideband phase locked loop (PLL) with integrated voltage controlled oscillators (VCOs) capable of operating in both integer-N and fractional-N modes. This evaluation kit (EV kit) simplifies the testing and evaluation of the MAX2870. Each EV kit is fully assembled and tested at the factory. Standard 50 ohm SMA connectors are included on the EV kits for the inputs and outputs to enable quick and easy evaluation on the test bench.
- Easy evaluation of the MAX2870
- 50 ohm SMA connectors
- PC control software
- Proven PCB layout
- Fully assembled and tested
Applications
Clock & Timing, Wireless
Contents
MAX2870 EV kit board, Mini-USB type A-to-type B cable.
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| Silicon Manufacturer | Analog Devices |
| Kit Application Type | Clock & Timing |
| Kit Contents | Evaluation Kit MAX2870, Mini-USB Type A to Type B Cable |
| SVHC | No SVHC (04-Feb-2026) |
| Silicon Core Number | MAX2870 |
| Application Sub Type | PLL & VCO |
| Product Range | - |
Other details
| Brand | ANALOG DEVICES |
| Part Number | MAX2870EVKIT# |
| Quantity | Each |
| Technical Data Sheet (3.94MB) EN | View or download |
| Application Note (1.19MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 58473.23 |
| 3-5 | ₹ 57876.56 |
| 5-10 | ₹ 56683.23 |
| 10+ | ₹ 55489.9 |
Bulk discount will be automatically applied during checkout based on quantity.
