Product Overview
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| IGBT Configuration |
Six Pack [Full Bridge] |
| Collector Emitter Saturation Voltage |
1.55V |
| Operating Temperature Max |
150°C |
| IGBT Termination |
Press Fit |
| IGBT Technology |
IGBT 3 [Trench/Field Stop] |
| Product Range |
EasyPACK |
| Continuous Collector Current |
45A |
| Power Dissipation |
150W |
| Transistor Case Style |
Module |
| Collector Emitter Voltage Max |
600V |
| Transistor Mounting |
Panel |
| SVHC |
No SVHC (08-Jul-2021) |
Other details
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.

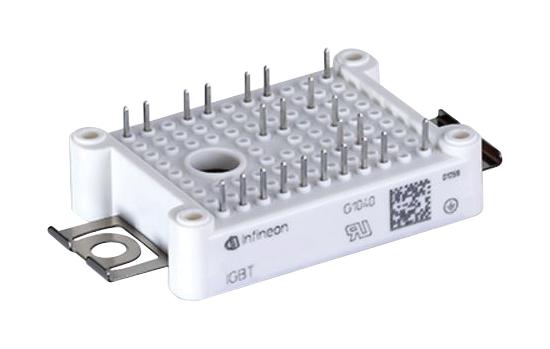

![INFINEON FS30R06W1E3BOMA1 IGBT Module, Six Pack [Full Bridge], 45 A, 1.55 V, 150 W, 150 °C, Module](http://www.tanotis.com/cdn/shop/files/2726156-40_027161af-d18a-457b-aa52-872b5614d411_{width}x.jpg?v=1791688816)
