Product Overview
The PFR Series is a capacitor with polypropylene film and metal foil electrodes, encapsulated in self-extinguishing resin in a box of material meeting the requirements of UL 94 V–0. Typical applications include high speed applications requiring low losses at high frequencies and high dV/dt, such as electrical ballasts, televisions, video and telecommunications.
- Rated voltage: 63 – 1,000 VDC
- Rated voltage: 40 – 250 VAC
- Capacitance range: 0.0001 – 0.022 µF
- Capacitance tolerance: ±1%, ±2%, ±2.5%, ±5%, ±10%
- Climatic category: 55/100/56, IEC 60068–1
- Operating temperature range of -55˚C to +100˚C
Product details
| Dielectric Type |
Film / Foil PP |
| Capacitance |
3300pF |
| Voltage(AC) |
63V |
| Capacitor Mounting |
Through Hole |
| Humidity Rating |
GRADE II (Test Condition A) |
| Product Length |
7.2mm |
| Product Height |
7mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 5% |
| Voltage(DC) |
100V |
| Capacitor Terminals |
PC Pin |
| Lead Spacing |
5mm |
| Product Width |
5.5mm |
| Product Range |
0 |
| Operating Temperature Max |
100°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
PFR5332J100J12L4BULK |
| Quantity |
Each |
| Product Change Notice (267.37KB) EN |
View or download |

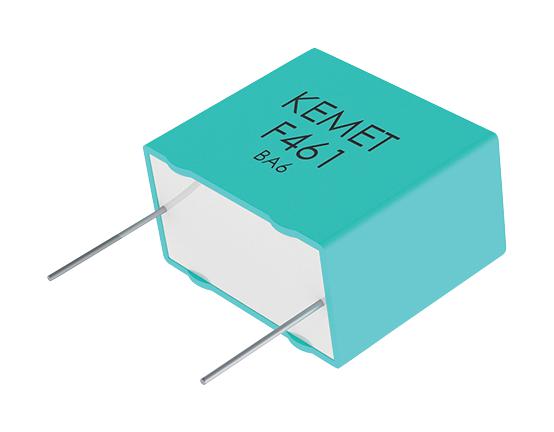

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
