Product Overview

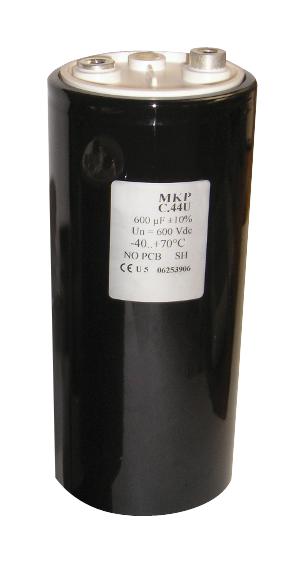

The C44U Series is a polypropylene segmented metallized film with cylindrical aluminium can type filled with resin, screw terminals and plastic deck. Typical applications include DC filtering and energy storage.
- Controlled self-healing
- Low losses
- High ripple current
- High capacitance density
- Long lifetime
- Climatic Category 40/85/21 IEC 60068–1
- Maximum Operating Temperature +90°C
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
100µF |
| Typical Applications |
DC Link |
| Voltage(AC) |
- |
| Humidity Rating |
- |
| Lead Spacing |
31.7mm |
| Peak Current |
2.1kA |
| ESR |
1700µohm |
| Product Length |
- |
| Product Height |
0 |
| Output (kvar) |
- |
| Operating Temperature Min |
- |
| Qualification |
- |
| Capacitor Case / Package |
Can |
| Capacitance Tolerance |
± 10% |
| Capacitor Mounting |
Stud Mount - M12 |
| Voltage(DC) |
1.1kV |
| Capacitor Terminals |
Screw |
| dv/dt Rating |
21V/µs |
| RMS Current (Irms) |
- |
| Product Diameter |
85mm |
| Product Width |
- |
| Ripple Current |
60A |
| Product Range |
0 |
| Operating Temperature Max |
90°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
C44UQGT6100A8TK |
| Quantity |
Each |
| Product Change Notice (97.44KB) EN |
View or download |
