| ₹ 206.17 includes GST and import duties. | |
| B2B customers can avail ₹ 31.44 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

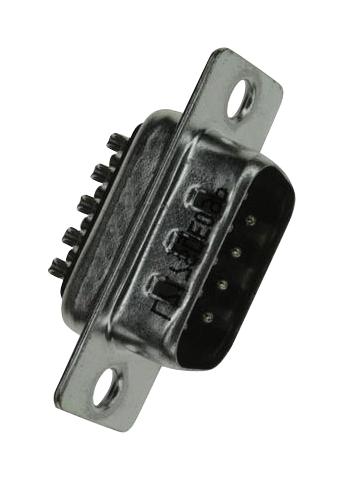

The L717SDE09P is a 9-position standard D-sub Plug with gold-plated brass contacts, UL94V-0 glass-filled thermoplastic housing and a DE-size tin-plated steel shell. The 17S series D-sub connector feature fixed precision formed.
- 20mΩ maximum contact resistance
- 1000MΩ at 500VDC Minimum Insulator resistance
- 3A current rating
- 1000VAC for 1 minute dielectric withstanding voltage
Applications
Commercial
Product details
| D Sub Connector Type | Standard |
| Product Range | SD |
| D Sub Shell Size | DE |
| Connector Mounting | Cable Mount |
| Contact Plating | Gold Plated Contacts |
| Gender | Plug |
| No. of Contacts | 9Contacts |
| Contact Termination Type | Solder Cup |
| Contact Material | Brass |
| Connector Body Material | Steel Body |
Other details
| Brand | AMPHENOL COMMUNICATIONS SOLUTIONS |
| Part Number | L717SDE09P |
| Quantity | Each |
| Technical Data Sheet (111.48KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 202.05 |
| 3-5 | ₹ 199.98 |
| 5-10 | ₹ 195.86 |
| 10+ | ₹ 191.74 |
Bulk discount will be automatically applied during checkout based on quantity.
