Description
Product Overview

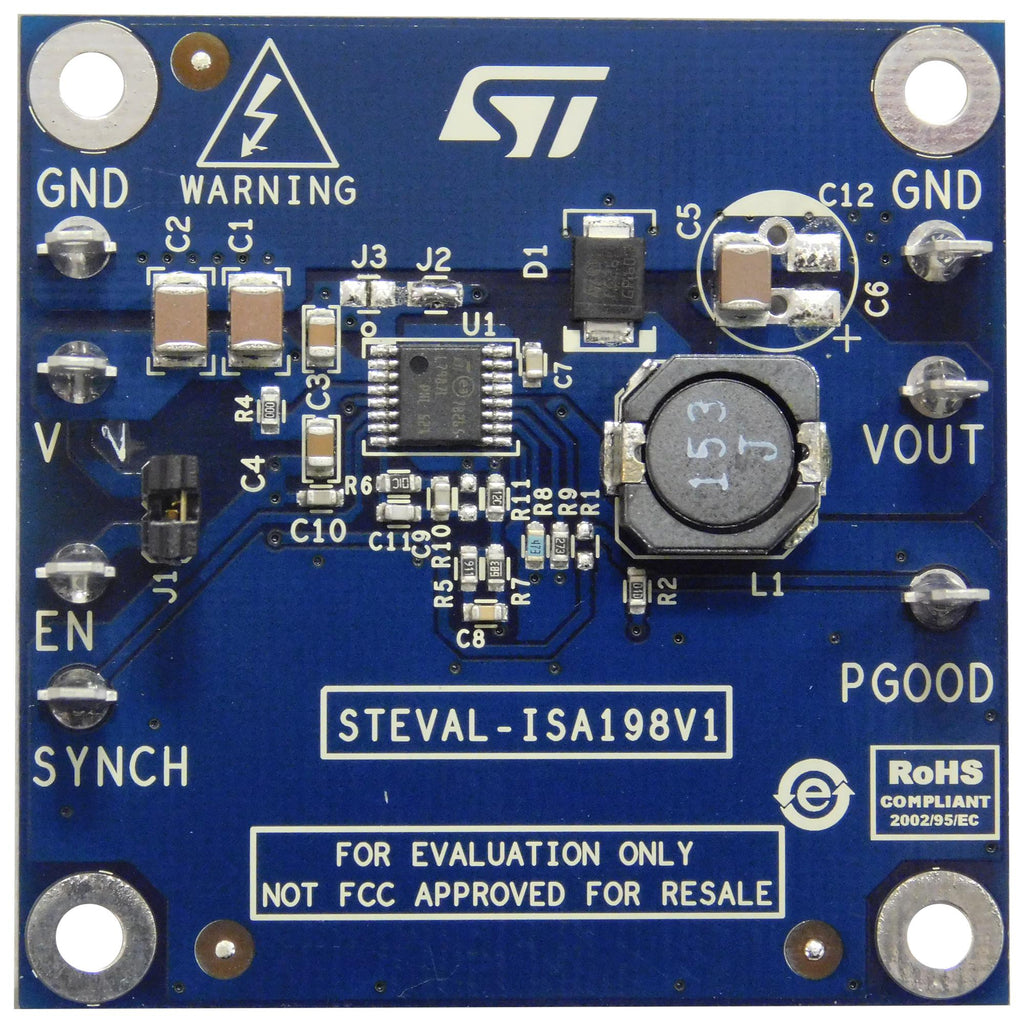

STEVAL-ISA198V1 is a 2 A step down DC-DC switching regulator evaluation board based on the L7987L. The STEVAL-ISA198V1 product evaluation board is a step-down switching power supply based on the L7987L regulator in an HTSSOP16 package. The output voltage can be set starting from 0.8V. Low drop-out operation, due to the advanced integrated switch management, can be achieved. The L7987L is a 61V, 2A step-down asynchronous switching regulator with embedded power MOSFET capable of delivering up to 2 A of current, depending on the application conditions. The soft-start, current limit threshold and switching frequency are adjustable for application optimization.
- 4.5V to 60V input voltage
- Step-down (buck) conversion
- 5V output voltage (VIN > 6V)
- Up to 2A DC output current
- 500kHz switching frequency
- 5ms programmed soft-start
- Compliant with ceramic output capacitors
- 180 degrees out of phase synchronization available
- Auto recovery overcurrent and thermal protection
Notes
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Kit Application Type | Power Management - Voltage Regulator |
| SVHC | No SVHC (25-Jun-2025) |
| Application Sub Type | Step Down Regulator |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STEVAL-ISA198V1 |
| Quantity | Each |
| Technical Data Sheet (267.47KB) EN | View or download |
| Product Change Notice (123.38KB) EN | View or download |
