Description
Product Overview

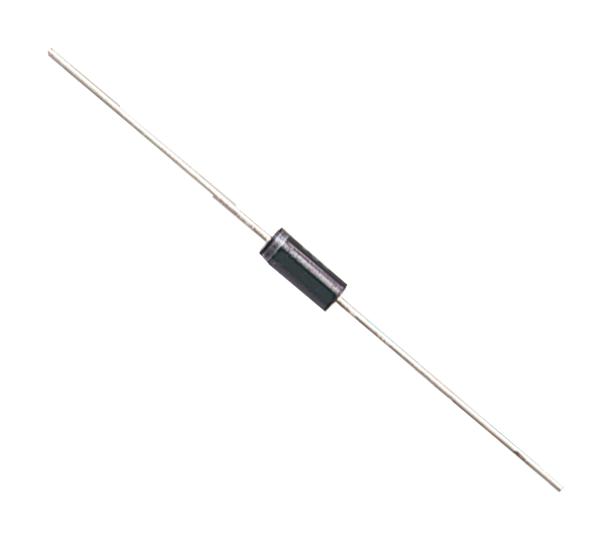

The P6KE30A from Taiwan Semiconductor is a P6KE series unidirectional transient voltage suppressor in DO-204AC (DO-15) package. It has excellent clamping capability and low dynamic impedance. The leads are pure tin plated and solderable per JESD22-B102. It also meets JESD 201 class 2 whisker test.
- UL recognized (file number E-326243)
- Peak power dissipation of 600W at TA = 25°C, TP = 1ms and nominal voltage of 30V
- Peak forward surge current (Ifsm) of 100A (8.3ms single half sine wave super imposed on rated load
- Steady state power dissipation of 5W at TL = 75°C
- Operating temperature range from -55°C to +175°C
- Stand-off voltage of 25.6V and maximum reverse leakage current of 1μA
- Breakdown voltage of 28.5V (minimum), 31.5V (maximum) and test current of 1mA
- 15A maximum peak surge current and 41.4V maximum clamping voltage
- Less than 1ps fast response time from 0V to VBR and 0.097%/°C maximum temperature variation
- Flammability rating meets UL94 V-0
Applications
Safety
Product details
| Product Range | P6KE |
| Reverse Standoff Voltage | 25.6V |
| Diode Case Style | DO-204AC |
| Minimum Breakdown Voltage | 28.5V |
| Peak Pulse Power Dissipation | 600W |
| Diode Mounting | Through Hole |
| SVHC | No SVHC (17-Jan-2023) |
| TVS Polarity | Unidirectional |
| Clamping Voltage Max | 41.4V |
| No. of Pins | 2Pins |
| Maximum Breakdown Voltage | 31.5V |
| Operating Temperature Max | 175°C |
| Qualification | - |
Other details
| Brand | TAIWAN SEMICONDUCTOR |
| Part Number | P6KE30A |
| Quantity | Each |
| Product Change Notice (324.38KB) EN | View or download |
| Technical Data Sheet (482.66KB) EN | View or download |
