Description
Product Overview

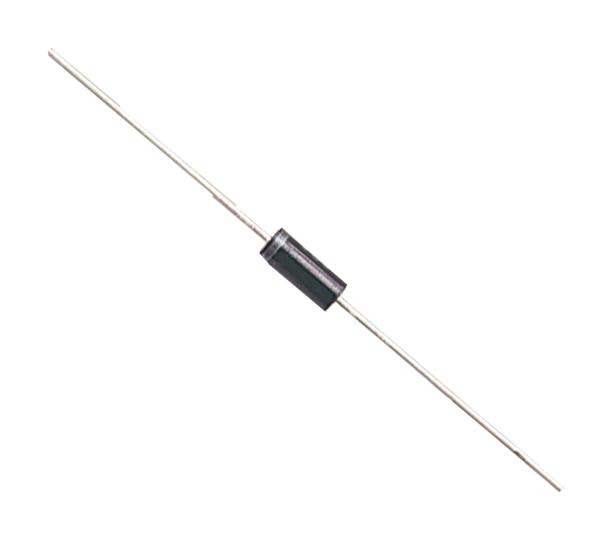

The 1.5KE160A from Taiwan Semiconductor is a 1.5KE series unidirectional transient voltage suppressor in DO-201 package. It has excellent clamping capability and low dynamic impedance. The leads are pure tin plated and solderable per JESD22-B102. It also meets JESD 201 class 2 whisker test.
- UL recognized (file number E-326243), flammability rating meets UL94 V-0
- Peak power dissipation of 1500W at TA = 25°C, TP = 1ms and nominal voltage of 160V
- Peak forward surge current (Ifsm) of 200A (8.3ms single half sine wave super imposed on rated load)
- Steady state power dissipation of 5W at TL = 75°C
- Operating junction temperature range from -55°C to +175°C
- Stand-off voltage of 136V and maximum reverse leakage current of 1μA
- Breakdown voltage of 152V (minimum), 168V (maximum) and test current of 1mA
- 7.1A maximum peak surge current and 219V maximum clamping voltage
- Less than 1ps fast response time from 0V to VBR and 0.108%/°C maximum temperature variation
- Maximum instantaneous forward voltage of 3.5V at 50A
Applications
Safety
Product details
| Product Range | 1.5KE |
| Reverse Standoff Voltage | 136V |
| Diode Case Style | DO-201AE |
| Minimum Breakdown Voltage | 152V |
| Peak Pulse Power Dissipation | 1.5kW |
| Diode Mounting | Through Hole |
| SVHC | No SVHC (17-Jan-2023) |
| TVS Polarity | Unidirectional |
| Clamping Voltage Max | 219V |
| No. of Pins | 2Pins |
| Maximum Breakdown Voltage | 162V |
| Operating Temperature Max | 175°C |
| Qualification | - |
Other details
| Brand | TAIWAN SEMICONDUCTOR |
| Part Number | 1.5KE160A |
| Quantity | Each |
| Technical Data Sheet (195.98KB) EN | View or download |
| Product Change Notice (324.38KB) EN | View or download |
