Product Overview

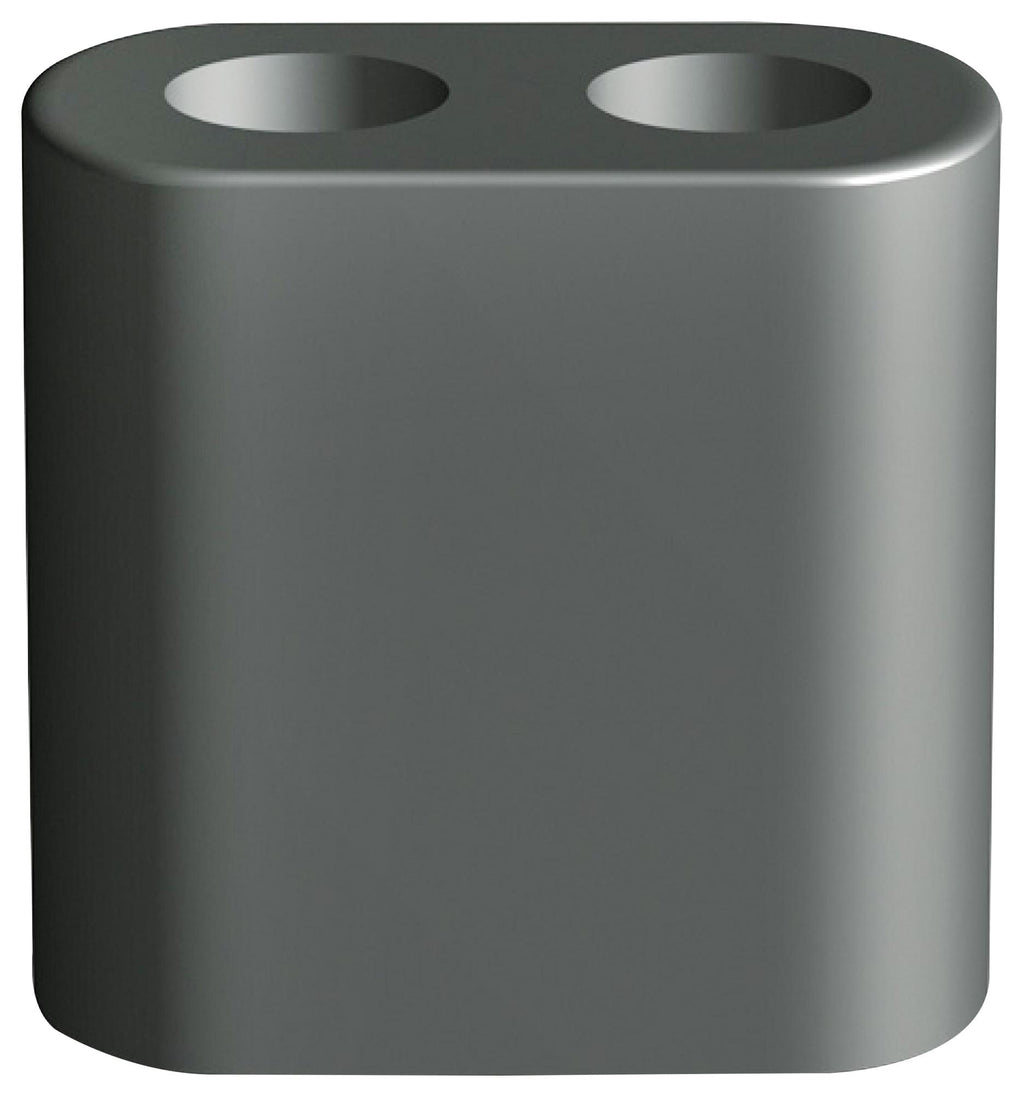

TDK B62152A0007X001 Transformer Cores, Double Aperture, 7.3mm x 4.2mm x 6.2mm, K1, Broadband Transformers, 7.6 mm
Product details
| Core Type |
Double Aperture |
| Core Material Grade |
K1 |
| Effective Magnetic Path Length |
7.6mm |
| Inductance Factor Al |
140nH |
| SVHC |
No SVHC (25-Jun-2025) |
| Core Size |
7.3mm x 4.2mm x 6.2mm |
| For Use With |
Broadband Transformers |
| Ae Effective Cross Section Area |
10.2mm² |
| Product Range |
B62152 Series |
