Product Overview

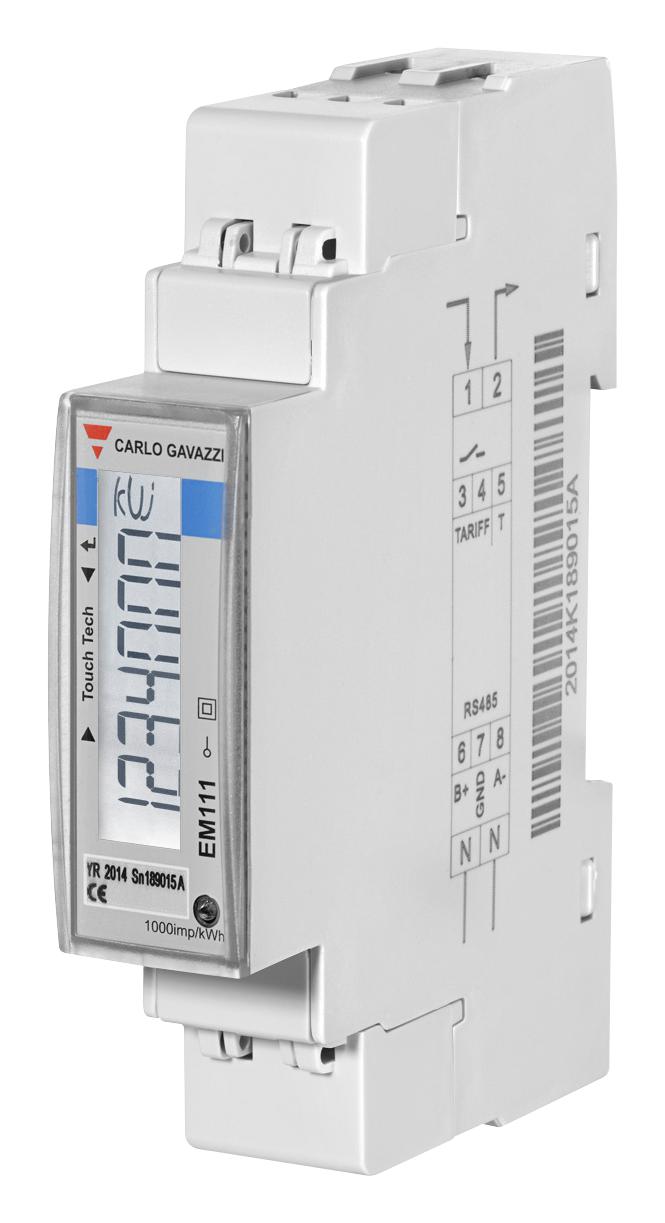

EM111DINAV81X01X is an energy management energy analyser (type EM111). It is a single-phase energy analyser with backlit LCD display with integrated touch keypad. It can measure imported and exported energy or be programmed to sum them into an unique totalizer. Housing for DIN rail mounting, with IP51 front degree protection. The meter is provided with pulse output proportional to the active energy being measured, RS485 Modbus port or M-Bus port. Compliant with the international accuracy standard IEC/EN62053-21, and the IEC/EN61557-12 performance requirements (active power and active energy).
- 230VLN AC - 5(45)A (Direct connection up to 32A)
- 1-phase 2-wire system, self power supply, pulse output
- Easy connection or wrong current direction detection
- Class 1 (kWh) according to EN62053-21, Class B (kWh) according to EN50470-3
- Accuracy ±0.5% RDG (current/voltage), rated primary current is 32A, max primary current is 45A
- Max cable cross section is 6mm², backlit LCD display with integrated touch key-pad
- Energy readout on display: 7 digit, variable readout on display: 4 digit
- Energy measurement: kWh and knar (imported/exported), kWh+ by 2 tariffs
- System variables, kW, knar, V, A, PF, Hz, kWdmd, kWdmd peak, self power supply
- Operating temperature range from -25 to +65°C
Product details
| No. of Phases |
Single Phase |
| Energy Meter Mounting |
DIN Rail |
| SVHC |
No SVHC (21-Jan-2025) |
| Supply Voltage |
230VAC |
| Product Range |
EM111 Series |
Other details
| Brand |
CARLO GAVAZZI |
| Part Number |
EM111DINAV81X01X |
| Quantity |
Each |
| Technical Data Sheet (481.96KB) EN |
View or download |
