Description
Product Overview

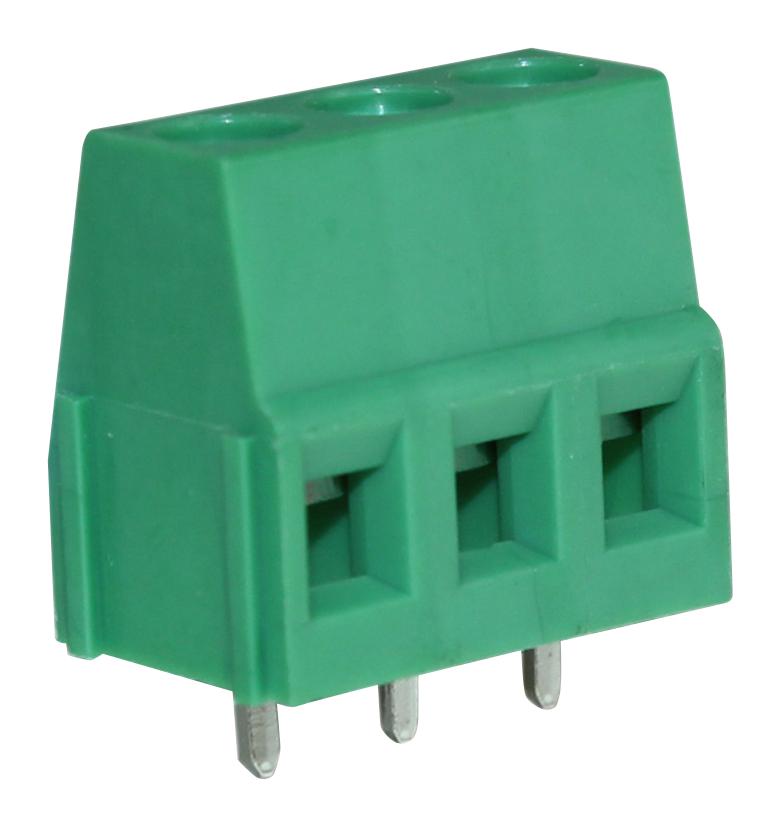

The CTBP0100/3 from Camdenboss is a 5mm pitch standard profile rising clamp terminal block with 3 poles double interlocking mechanism for increased strength. It is moulded in green UL94-V0 flame retardant PA66 material. approved by UL and VDE.
- Wire size of 2.5mm² (22AWG to 12AWG)
- Professional rising clamp terminal
- Guided pin alignment
- Rating is UL=16A/300V, VDE=20A/250V
- Insulation resistance is 500Mohm/500V withstand voltage is AC2000V/1min, 20mohm contact resistance
- Working temperature range from -40°C to 105°C
- Brass, nickel plated rising clamp
- Tin plated brass pin
- M2.5 steel, zinc plated captive screws
- 15mm length
Applications
Industrial
Product details
| Pitch Spacing | 5mm |
| Wire Size AWG Min | 22AWG |
| Conductor Area CSA | 2.5mm² |
| Rated Current | 16A |
| Block Orientation | Through Hole Right Angle |
| SVHC | Lead (21-Jan-2025) |
| No. of Positions | 3Ways |
| Wire Size AWG Max | 12AWG |
| Wire Connection Method | Screw |
| Rated Voltage | 300V |
| Product Range | CamBlock Plus |
Other details
| Brand | CAMDENBOSS |
| Part Number | CTBP0100/3 |
| Quantity | Each |
| Technical Data Sheet (368.47KB) EN | View or download |
