Product Overview

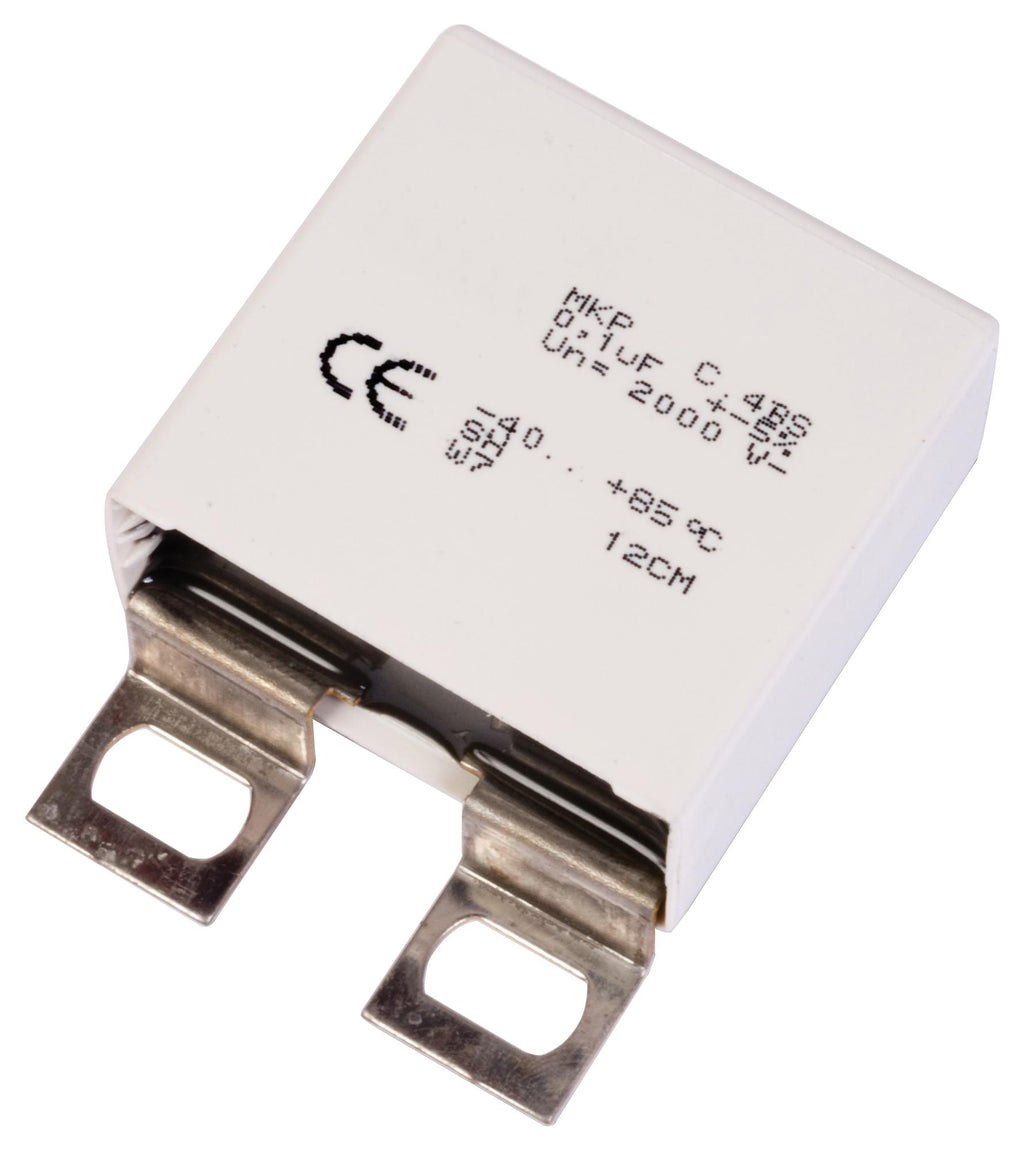

The C4BS Series is a polypropylene metallized film with rectangular plastic box type filled with resin and tinned brass lugs.Typical applications include IGBT devices.
- Self-healing
- Low losses
- High ripple current
- High contact reliability
- Suitable for high frequency applications
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
1.5µF |
| Typical Applications |
Snubber |
| Voltage(AC) |
630V |
| Humidity Rating |
- |
| Lead Spacing |
- |
| Peak Current |
1.448kA |
| ESR |
2300µohm |
| Product Length |
42mm |
| Product Height |
45mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - Tabs |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Panel Mount |
| Voltage(DC) |
1.2kV |
| Capacitor Terminals |
Solder Lug |
| dv/dt Rating |
965V/µs |
| RMS Current (Irms) |
34A |
| Product Diameter |
- |
| Product Width |
30mm |
| Ripple Current |
- |
| Product Range |
0 |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
C4BSPBX4150ZBLJ |
| Quantity |
Each |
| Product Change Notice (467.38KB) EN |
View or download |
