Description
Product Overview

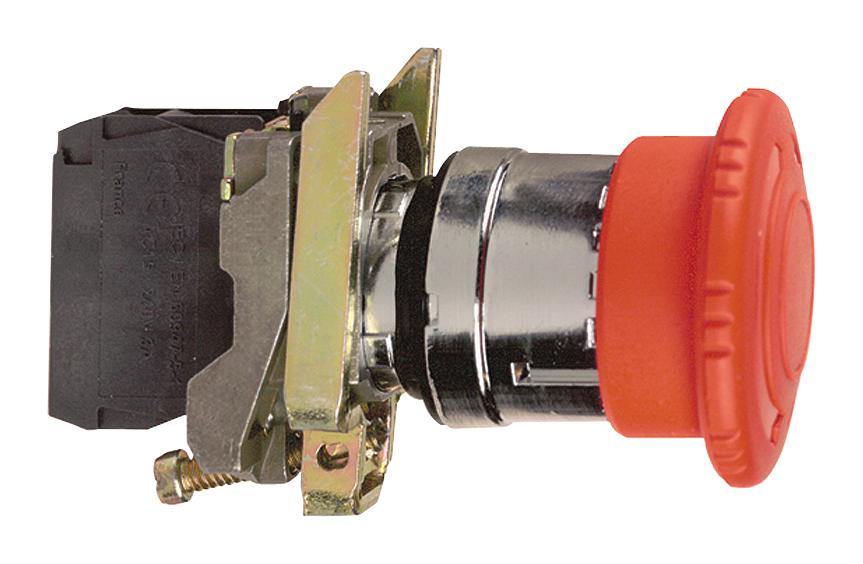

The XB4BS8445 is a single-pole single-throw (SPST) Emergency Stop Pushbutton Switch with 1NO + 1NC slow-break silver alloy (Ag/Ni) contacts and screw clamp terminals. This pushbutton operator features round signaling unit head, turn to release reset, chromium-plated metal bezel, Zamak fixing collar, trigger action and mechanical latching red mushroom Ø40mm unmarked operator. This XB4 series pushbutton switch is suitable for use with the Harmony XB4 range product. It meets with the EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, IEC 60364-5-53, JIS C 4520, UL 508 and CSA C22.2 No 14 standards.
- Green premium product
- 300000 cycles Mechanical durability
- IP66 Protection rating
- IK03 Protection rating
- -25 to 70°C Ambient air temperature range for operation
Applications
Automotive, Industrial, Commercial
Product details
| Contact Configuration | SPST-NO, SPST-NC |
| Switch Terminals | Screw Clamp |
| Contact Voltage AC Nom | 600V |
| Pushbutton Actuator Style | Mushroom |
| Product Range | Harmony XB4 Series |
| Switch Operation | Turn to Release |
| Contact Current Max | 1.2A |
| Contact Voltage DC Nom | - |
| IP Rating | IP66 |
Other details
| Brand | SCHNEIDER ELECTRIC |
| Part Number | XB4BS8445 |
| Quantity | Each |
| Handling Instructions (152.99KB) EN | View or download |
| Manufacturer Product Page (686.67KB) EN | View or download |
| Safety Data Sheet B (679.65KB) EN | View or download |
| Certificate of Conformity (8.34MB) EN | View or download |
| Technical Data Sheet (112.70KB) EN | View or download |
| Miscellaneous (383.31KB) EN | View or download |
| Manufacturer Catalogue (8.69MB) EN | View or download |
