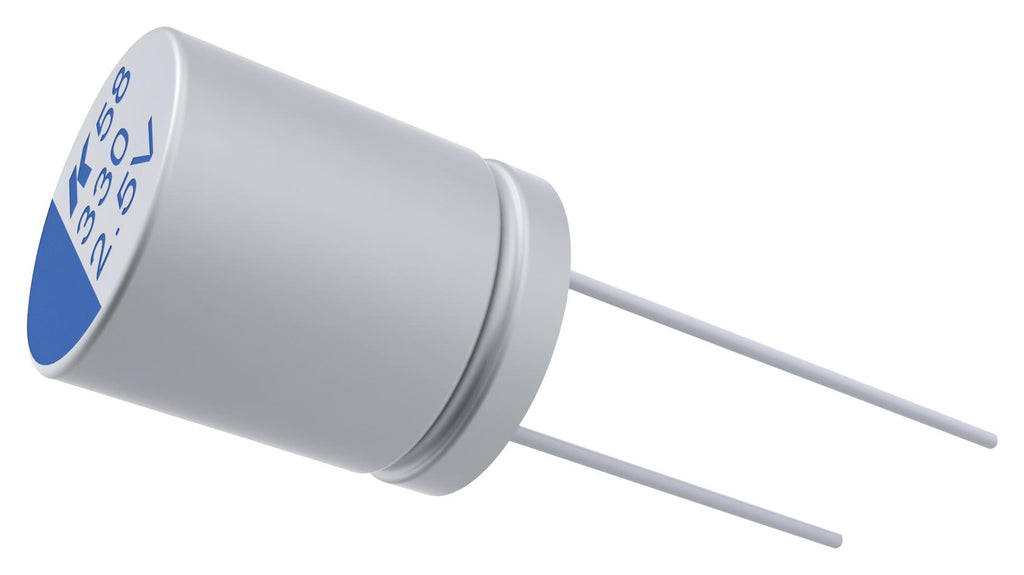

Product Overview
The A759 Series of Single-Ended Conductive Polymer Aluminum Solid Electrolytic Capacitors offer longer life and greater stability across a wide range of temperatures. The A759 Series highly conductive solid polymer electrolyte eliminates the risk of explosion from drying out and due to its low ESR properties is able to withstand higher ripple currents during normal operation. The A759 Series are ideally suited for industrial and commercial applications.
- 2,000 hours @ 125°C
- Low impedance
- High ripple current
- High Voltage
Product details
| Capacitance |
15µF |
| Capacitor Case / Package |
Radial Leaded |
| Lifetime @ Temperature |
2000 hours @ 125°C |
| Capacitor Mounting |
Through Hole |
| Ripple Current |
1.85A |
| Product Length |
- |
| Product Height |
12mm |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Voltage(DC) |
100V |
| ESR |
0.052ohm |
| Capacitance Tolerance |
± 20% |
| Capacitor Terminals |
Radial Leaded |
| Product Diameter |
8mm |
| Product Width |
- |
| Operating Temperature Min |
-55°C |
| Product Range |
A759 Series |
Other details
| Brand |
KEMET |
| Part Number |
A759KS156M2AAAE052 |
| Quantity |
Each |
