Product Overview

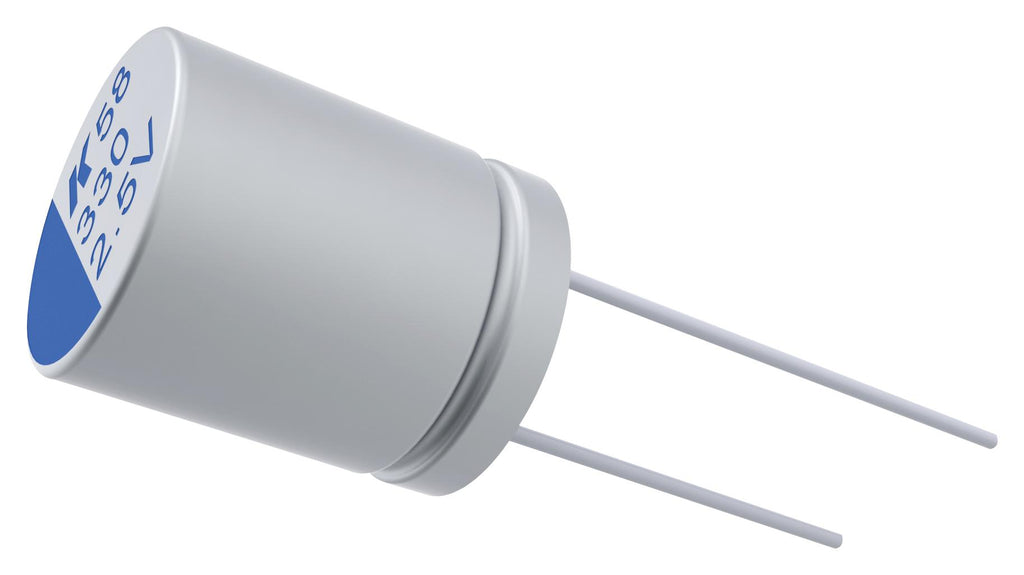

The A755 Series is a Single-Ended Conductive Polymer Aluminum Solid Electrolytic Capacitors. They offer longer life and greater stability across a wide range of temperatures. The A755 Series highly conductive solid polymer electrolyte eliminates the risk of explosion from drying out and due to its low ESR properties is able to withstand higher ripple currents during normal operation. The A755 Series are ideally suited for industrial and commercial applications.
- 5,000 hours @ 105°C
- High ripple current
- Low impedance
- 47 to1500 µF Capacitance
Product details
| Capacitance |
100µF |
| Capacitor Case / Package |
Radial Leaded |
| Lifetime @ Temperature |
5000 hours @ 105°C |
| Capacitor Mounting |
Through Hole |
| Ripple Current |
2.5A |
| Product Length |
- |
| Product Height |
12mm |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Voltage(DC) |
25V |
| ESR |
0.025ohm |
| Capacitance Tolerance |
± 20% |
| Capacitor Terminals |
Radial Leaded |
| Product Diameter |
8mm |
| Product Width |
- |
| Operating Temperature Min |
-55°C |
| Product Range |
A755 Series |
Other details
| Brand |
KEMET |
| Part Number |
A755KS107M1EAAE025 |
| Quantity |
Each |
