Description
Product Overview

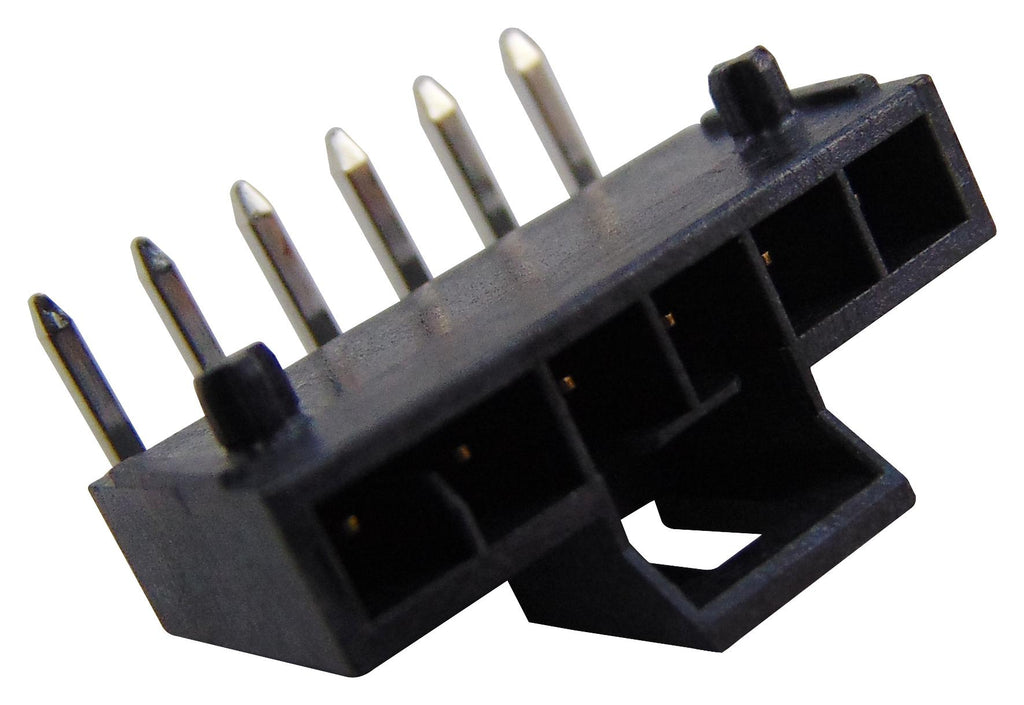

Nano-Fit power connectors provide fully protected header terminals in a small package for design engineers. They offer multiple mechanical keying options to ensure proper mating and terminal position assurance (TPA) to reduce terminal back-out.
- Ultra-low mate force terminal
- Positive-lock housing with anti-snag design
- Terminal interface with four points of contact
- SMT version enables use of multi-layer boards by eliminating the need for through holes
- SMT headers provide short electrical paths
- Ultra-low mate force terminal
Applications
Automotive, Consumer Electronics, Industrial, Medical, Communications & Networking
Product details
| Connector Systems | Wire-to-Board |
| No. of Rows | 1Rows |
| Contact Termination Type | Through Hole Right Angle |
| Connector Shroud | Shrouded |
| Contact Plating | Gold Plated Contacts |
| Connector Body Material | LCP (Liquid Crystal Polymer) Body |
| Contact Current Rating | 8A |
| Pitch Spacing | 2.5mm |
| No. of Contacts | 6Contacts |
| Product Range | Nano-Fit 105313 Series |
| Contact Material | Brass |
| Connector Type | PCB Header |
| Connector Orientation | Right Angle |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | MOLEX |
| Part Number | 105313-1206 |
| Quantity | Each |
| Product Change Notice (242.78KB) EN | View or download |
| Packaging / Drawing / Footprint (15.51KB) EN | View or download |
| Manufacturer Product Page (316.74KB) EN | View or download |
| Drawing (293.30KB) EN | View or download |
| Technical Data Sheet (55.13KB) EN | View or download |
| CAD Multiple Formats (50.82KB) EN | View or download |
| One Page Summary (55.13KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
