Product Overview

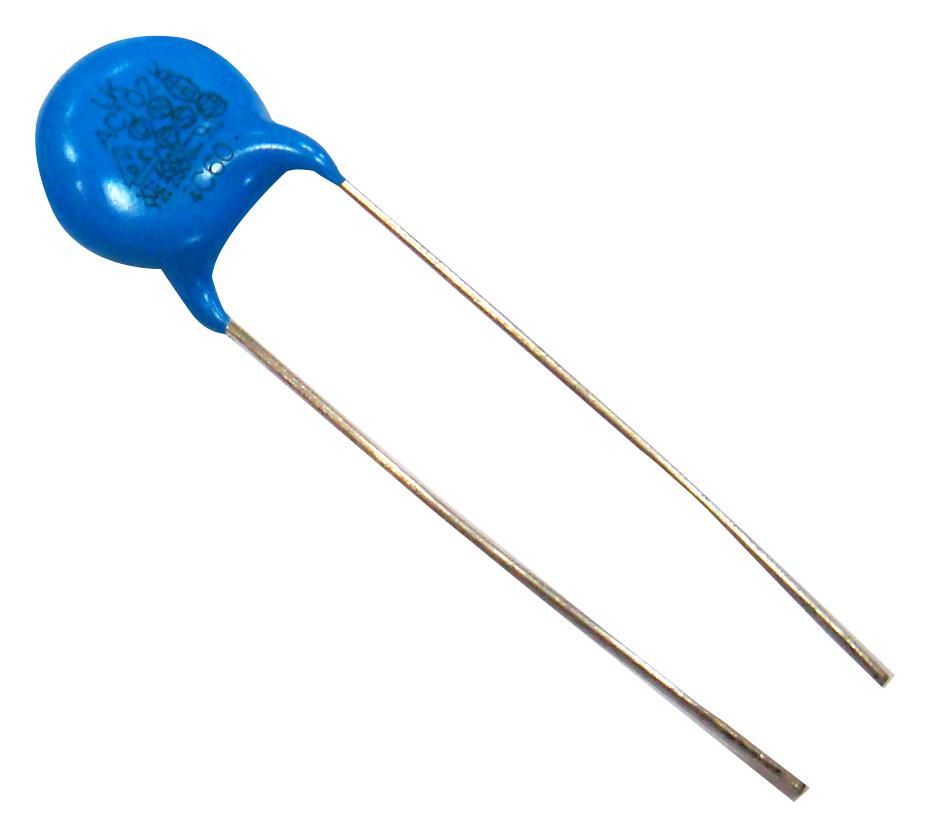

MULTICOMP PRO RD21B331K201A5HAND Multilayer Ceramic Capacitor, 330 pF, 200 V, ± 10%, PC Pin, X7R, 5 mm
Product details
| Capacitance |
330pF |
| Capacitance Tolerance |
± 10% |
| Dielectric Characteristic |
X7R |
| Capacitor Case / Package |
Radial Leaded |
| Product Diameter |
- |
| Product Width |
3.5mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Voltage(DC) |
200V |
| Capacitor Terminals |
PC Pin |
| Lead Spacing |
5mm |
| Product Range |
MCRD21 Series |
| Product Length |
5mm |
| Product Height |
6.5mm |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
RD21B331K201A5HAND |
| Quantity |
Each |
| Technical Data Sheet (1.09MB) EN |
View or download |
