Description
Product Overview

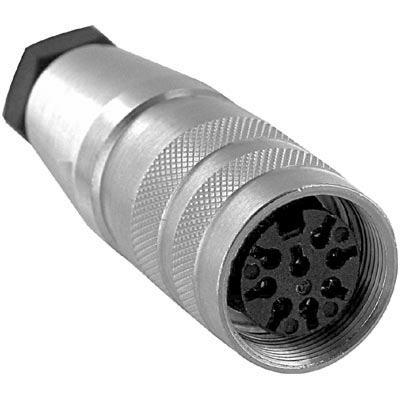

The C091 31D008 101 2 is a 8-contact female Circular Connector with thermoplastic insert, nickel-plated die-cast housing, silver-plated contacts, solder termination and screw locking. This straight cable connector is designed for Ø6 to 8mm cable.
- 250V Rated voltage
- 1200V Rated impulse voltage
- <lt/>5mΩ Contact resistance
- 5A Current carrying capacity
- ≤0.5mm² Maximum wire gauge
- Neoprene gasket
- IP67/IP65 Protection rating
Applications
Industrial
Product details
| Connector Type | Standard Circular Connector |
| Circular Connector Shell Style | Straight Plug |
| Circular Connector Contact Type | Solder Socket |
| Connector Body Material | Aluminium Alloy Body |
| Contact Material | Copper Alloy |
| IP Rating | IP65, IP67, IP69K |
| Product Range | signal mate C091 M16-D Series |
| No. of Contacts | 8Contacts |
| Coupling Style | Threaded |
| Connector Body Plating | Nickel |
| Contact Plating | Silver |
| SVHC | No SVHC (17-Jan-2023) |
Other details
| Brand | AMPHENOL SINE/TUCHEL |
| Part Number | C091 31D008 101 2 |
| Quantity | Each |
| Enhanced Product Overview (1.26MB) EN | View or download |
| Drawing (271.64KB) EN | View or download |
| Technical Data Sheet (1.09MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3227.87 |
| 3-5 | ₹ 3194.93 |
| 5-10 | ₹ 3129.05 |
| 10+ | ₹ 3063.18 |
Bulk discount will be automatically applied during checkout based on quantity.
