Product Overview

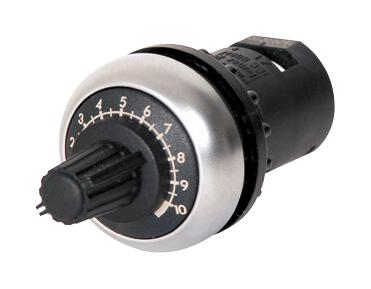

Eaton’s M22 potentiometers allow for a ready to use operator in a conveniently sized package. M22 potentiometers include the resistive element, instead of just a knob, and a built in legend surrounding the knob. The slim design, with integrated contacts and the range of resistances available, allows for a quick install.
- Scale markings on the knob allows the operator to be used without an additional legend plate
- Slim design allows for space saving and simple wiring and installation
- IP66
- 22.5 mm mounting hole
Product details
| Track Resistance |
10kohm |
| Track Taper |
Linear |
| Resistance Tolerance |
± 10% |
| Potentiometer Mounting |
Panel Mount |
| No. of Gangs |
- |
| Shaft Length |
29.2mm |
| Potentiometer Type |
- |
| Potentiometer Terminals |
Screw |
| Product Length |
62.1mm |
| Product Height |
- |
| Operating Temperature Max |
70°C |
| No. of Turns |
- |
| Power Rating |
500mW |
| Product Range |
RMQ-Titan M22 Series |
| Shaft Diameter |
- |
| Adjustment Type |
Knurled Knob |
| Temperature Coefficient |
- |
| Resistor Technology |
- |
| Resistor Case / Package |
- |
| Product Width |
- |
| Operating Temperature Min |
-25°C |
| SVHC |
No SVHC (17-Dec-2015) |
