Description
Product Overview
The TL431A series Programmable Precision Reference feature low output noise voltage. The TL431A, B integrated circuit is programmable shunt regulator diode. This monolithic IC voltage reference operates as a low temperature coefficient zener which is programmable from Vref to 36V with two external resistors. This device exhibits a wide operating current range of 1 to 100mA with a typical dynamic impedance of 0.22Ω. The characteristics of this reference make them excellent replacements for zener diodes in many applications such as digital voltmeters, power supplies and op amp circuitry. The 2.5V reference makes it convenient to obtain a stable reference from 5V logic supplies and since the TL431A, B operates as a shunt regulator, it can be used as either a positive or negative voltage reference.
- Temperature compensated for operation over the full temperature range
- Low output noise voltage
- Straight Lead
Applications
Metering, Power Management
Product details
| Voltage Reference Type | Shunt - Adjustable |
| Reference Voltage Min | 2.495V |
| Initial Accuracy | 1% |
| IC Case / Package | TO-92 |
| IC Mounting | Through Hole |
| Operating Temperature Min | -40°C |
| Qualification | - |
| SVHC | No SVHC (04-Feb-2026) |
| Reference Voltage | 2.495V to 36V |
| Product Range | TL431A |
| Reference Voltage Max | 36V |
| Temperature Coefficient | ± 50ppm/°C |
| No. of Pins | 3Pins |
| Input Voltage Max | 36V |
| Operating Temperature Max | 85°C |
| MSL | MSL 1 - Unlimited |
| Automotive Qualification Standard | - |
| Voltage Reference Case Style | TO-92 |
Other details
| Brand | ONSEMI |
| Part Number | TL431AILPG |
| Quantity | Each |
| Product Change Notice (1.80MB) EN | View or download |
| Technical Data Sheet (175.83KB) EN | View or download |

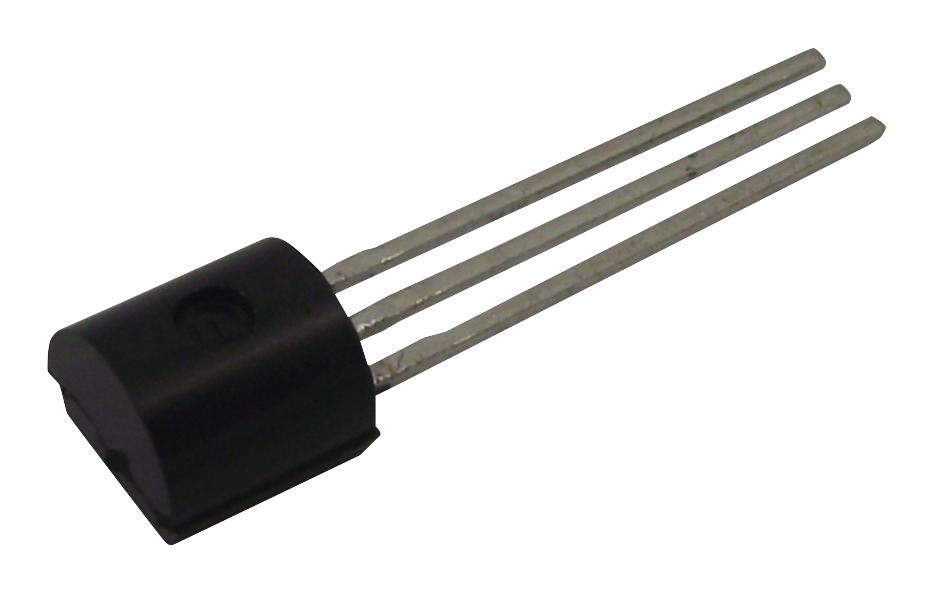

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
