Description
Product Overview

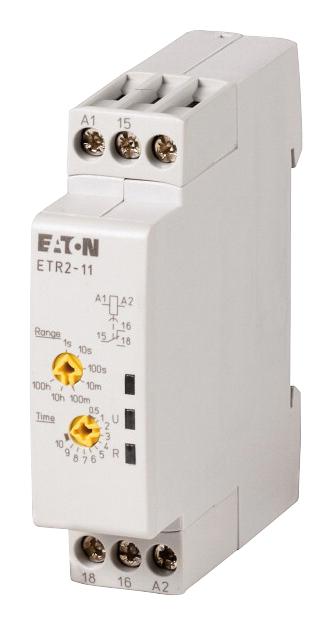

The ETR2-11 from Eaton is a 1W timing relay with one changeover contact. It is optimised for use in service distribution boards (space unit 17.5mm) thus the space in control panel can be optimally used and system is provided with a common design appearance. This timing relay is approved by IEC/EN 61812-1 and IEC/EN 60947-5-1 standards. It has non-isolated actuation and DIN rail (IEC/EN 60715) mounting (clip-type).
- On-delayed timing functions (fixed timing)
- Rated operation current of 3A (230V, N/O) and conventional thermal current of 6A
- Timing range from 0.05s to 100h and input frequency range from DC or 47Hz to 63Hz
- Voltage range from 24VAC to 240VAC, 50Hz/60Hz and 24VDC to 48VDC
- Minimum switching voltage is 12V and minimum switching current is 100mA
- IP50/IP20 degree of protection for enclosures/terminals
- UL 508 (file number E29184) and CSA-22.2 No. 14-05 approved
- Operating ambient temperature range from -25°C to 60°C
- Recovery time is less than 50ms and duty factor (DF) is 100%
- Accuracy within temperature range is Δt <lt/> 0.06 %/°C
Applications
Industrial
Product details
| Contact Voltage VDC | - |
| Product Range | ETR2 Series |
| Contact Current | 3A |
| Contact Voltage VAC | 230V |
| Nom Input Voltage | 240VAC |
| Time Min | 0.05s |
| Contact Configuration | SPDT |
| Relay Mounting | DIN Rail |
| Relay Terminals | Screw |
| Timing Adjustment | - |
Other details
| Brand | EATON MOELLER |
| Part Number | ETR2-11 |
| Quantity | Each |
| Technical Data Sheet (2.62MB) EN | View or download |
