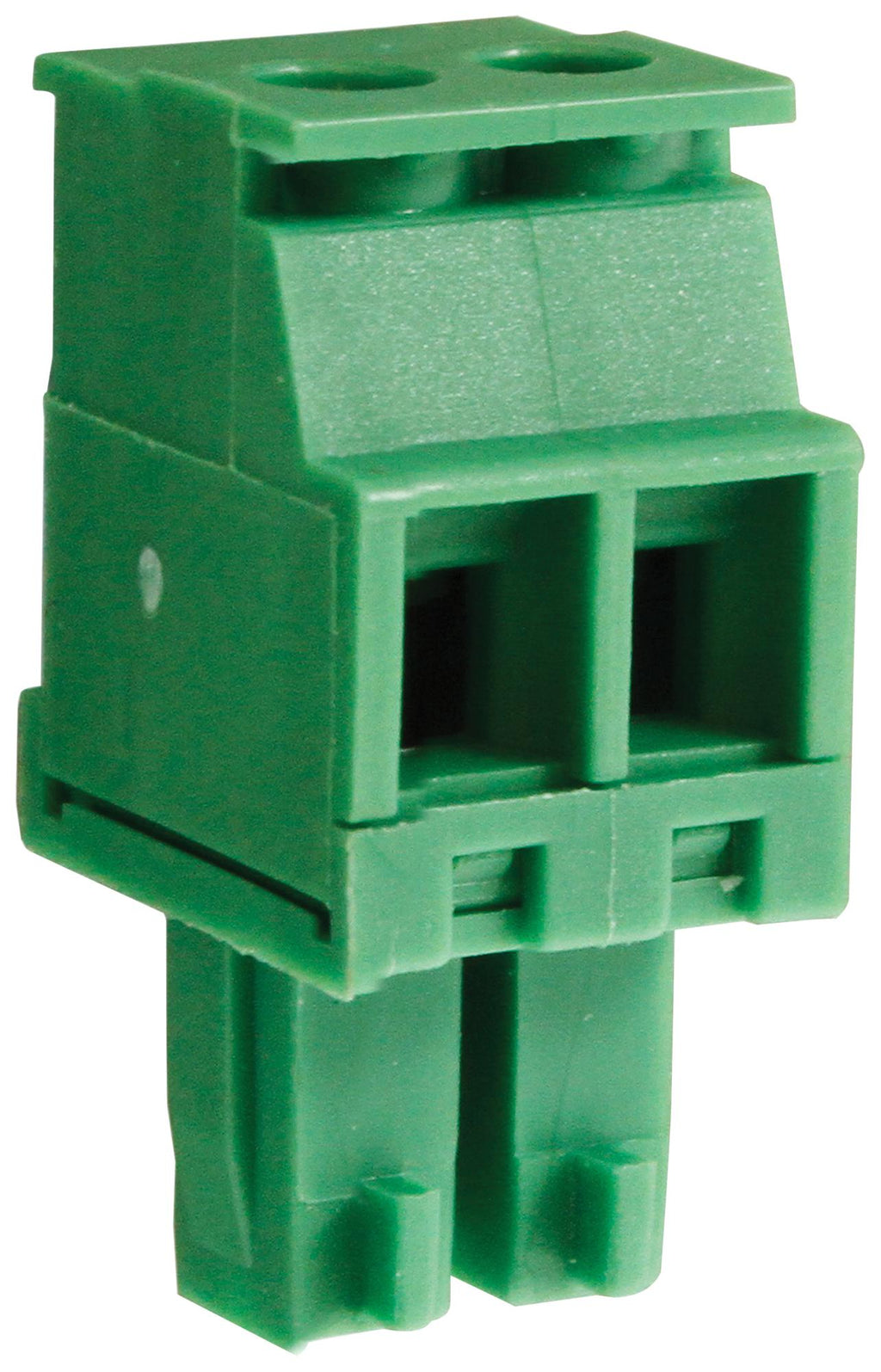

Product Overview
- Wire size of 1.0mm² (28AWG to 16AWG) solid & stranded cable
- Professional rising clamp terminal, anti solder wicking, Vertical female plug style
- Guided pin alignment
- Insulation resistance is 500Mohm/500V withstand voltage is AC2000V/1min, 20mohm contact resistance
- Working temperature range from -40°C to 105°C
- Brass, nickel plated rising clamp
- Tin plated brass pin
- M2 Steel, zinc Plated
- 8.4mm length
Product details
| Pitch Spacing |
3.81mm |
| Wire Size AWG Min |
28AWG |
| Wire Size AWG Max |
16AWG |
| Wire Connection Method |
Clamp |
| Rated Voltage |
300V |
| SVHC |
Lead (21-Jan-2025) |
| No. of Positions |
2Ways |
| Wire Size (AWG) |
28AWG to 16AWG |
| Conductor Area CSA |
1mm² |
| Rated Current |
8A |
| Product Range |
CamBlock Plus |
Other details
| Brand |
CAMDENBOSS |
| Part Number |
CTBP92VE/2S |
| Quantity |
Each |
| Technical Data Sheet (785.34KB) EN |
View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
