Product Overview
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| IC Function |
Analogue Switch |
| On State Resistance Max |
150ohm |
| IC Case / Package |
DIP |
| No. of Channels |
8Channels |
| On Resistance Max |
150ohm |
| Mux / Demux Configuration |
- |
| IC Mounting |
Through Hole |
| Operating Temperature Max |
70°C |
| Qualification |
- |
| SVHC |
No SVHC (04-Feb-2026) |
| Power Supply Type |
Dual Supply |
| Supply Voltage Range |
± 4.5V to ± 20V |
| No. of Pins |
24Pins |
| On Resistance Typ |
100ohm |
| Switch Configuration |
SPST |
| Interfaces |
Serial, SPI |
| Operating Temperature Min |
0°C |
| Product Range |
- |
| MSL |
- |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
MAX335CNG+ |
| Quantity |
Each |
| Technical Data Sheet (383.35KB) EN |
View or download |

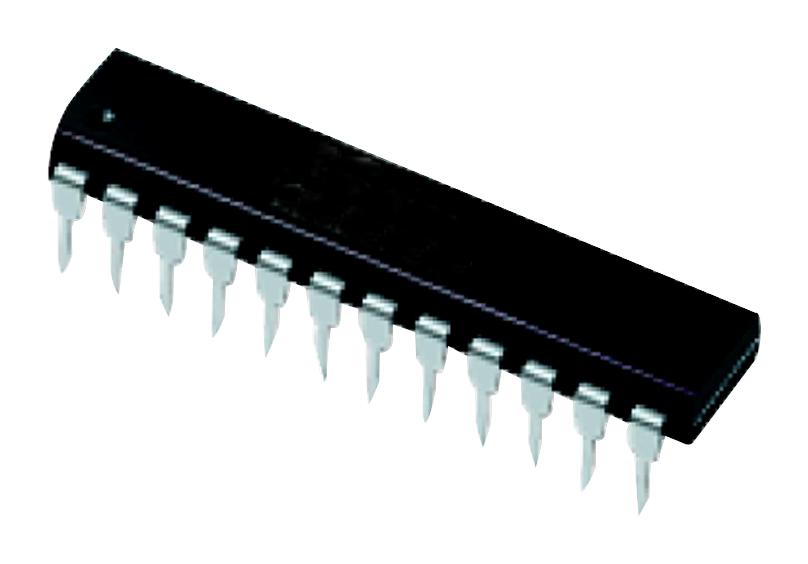

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
