Description
Product Overview

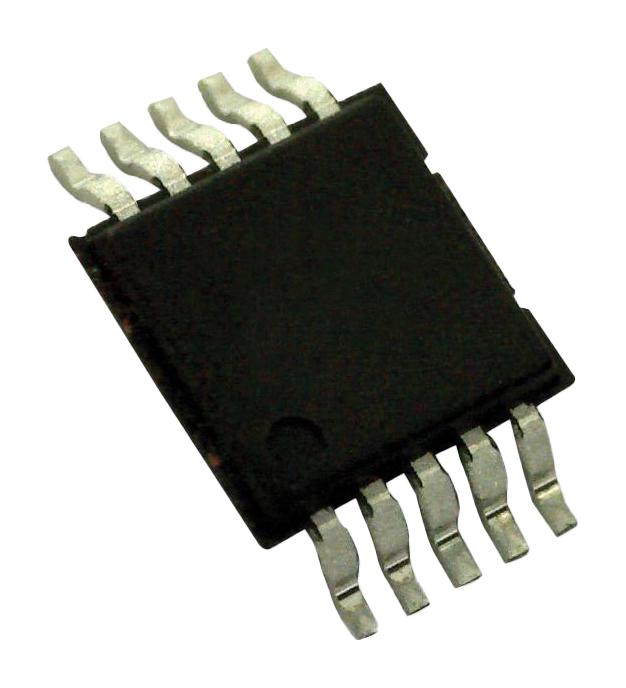

The MAX1821EUB+ is a WCDMA cellular phone 600mA buck regulator in 10 pin µMAX package. The low dropout, pulse width modulated (PWM) DC-DC buck regulator is optimized to provide power to the power amplifier (PA) in WCDMA cell phones, however, they may be applied in many other applications where high efficiency is a priority. It include a low on-resistance internal MOSFET switch and synchronous rectifier to maximize efficiency and minimize external component count, 100% duty cycle operation allows for low dropout of only 150mV at 600mA load, including the external inductor resistance. It is used in WCDMA cell phone power amplifiers, PDA, palmtop and notebook computers, microprocessor core supplies, network cards, digital cameras and PCMCIA.
- Supply voltage range is 2.6V to 5.5V
- Operating temperature range from -40°C to 85°C
- Programmable output from 1.25V to 5.5V, feature no Sync
- Low quiescent current of 180µA (typ) in skip mode, 0.1µA (typ) in shutdown mode
- No external schottky diode required
- Output current is 600mA
- 0% to 100% duty cycle operation
- 150mV dropout at 600mA load (including RDC of external inductor)
Applications
Power Management, Portable Devices
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| Control Mode | Current Mode Control |
| Supply Voltage Max | 5.5V |
| Duty Cycle (%) | 100% |
| No. of Pins | 10Pins |
| Topology | Buck (Step Down) |
| Operating Temperature Max | 85°C |
| Qualification | - |
| SVHC | No SVHC (04-Feb-2026) |
| Controller IC Case Style | µMAX |
| Supply Voltage Min | 2.6V |
| No. of Outputs | 1 Output |
| IC Case / Package | µMAX |
| Switching Frequency | 1MHz |
| Operating Temperature Min | -40°C |
| Product Range | - |
| MSL | MSL 1 - Unlimited |
| Automotive Qualification Standard | - |
Other details
| Brand | ANALOG DEVICES |
| Part Number | MAX1821EUB+ |
| Quantity | Each |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1012.4 |
| 3-5 | ₹ 1002.07 |
| 5-10 | ₹ 981.41 |
| 10+ | ₹ 960.75 |
Bulk discount will be automatically applied during checkout based on quantity.
