Description
Product Overview

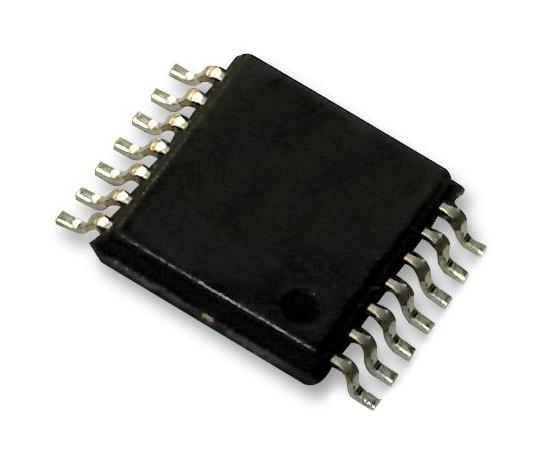

The MAX5413EUD+ is a dual, 256-tap, low-drift digital potentiometer in 14 pin TSSOP package. MAX5413 provides glitchless switching between resistor taps as well as a convenient power-on reset (POR) that sets the wiper to the midscale position at power-up. Each potentiometer consists of a fixed resistor with a wiper contact that is digitally controlled. This device is ideal for applications requiring low temperature-coefficient variable resistors such as adjustable-gain circuit configuration, low drift programmable gain amplifiers, impedance matching and volume control.
- Supply voltage range is 2.7V to 5.5V
- Operating temperature range from -40°C to 85°C
- 3-wire serial interface
- Ultra low 0.1µA supply current
- End to end resistance is 10Kohm at ±25% tolerance and temperature coefficient is 35ppm/°C
- Ratiometric temperature coefficient is 5ppm/°C
- Wiper settling time is 100ns
Applications
Power Management, Audio, Signal Processing
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| Potentiometer Type | Volatile |
| No. of Pots | Dual |
| Supply Voltage Min | 2.7V |
| Supply Voltage Max | 5.5V |
| IC Case / Package | TSSOP |
| Potentiometer IC Case Style | TSSOP |
| No. of Steps | 256 |
| Operating Temperature Min | -40°C |
| Product Range | Dual 256-Tap Volatile Digital Pots |
| MSL | MSL 1 - Unlimited |
| End To End Resistance | 10kohm |
| Control Interface | SPI |
| Track Taper | Linear |
| Resistance Tolerance | ± 25% |
| No. of Pins | 14Pins |
| IC Mounting | Surface Mount |
| Temperature Coefficient | 35ppm/°C |
| Operating Temperature Max | 85°C |
| Qualification | - |
| SVHC | No SVHC (14-Jun-2023) |
Other details
| Brand | ANALOG DEVICES |
| Part Number | MAX5413EUD+ |
| Quantity | Each |
| Product Change Notice (459.50KB) EN | View or download |
| Application Note (125.58KB) EN | View or download |
