Description
Product Overview
The IH5043CPE+ is a general purpose CMOS analogue switch in 16 pin DIP package. This is a dual SPDT switch featuring low 5nA leakage current and a quiescent current of less than 10µA. It also features break before make switching operation and low charge injection. Typical applications include sample and hold circuits, test equipment, PBX, PABX, guidance and control systems and military radios.
- Supply voltage range is ± 4.5V to ± 18V
- Operating temperature range from 0°C to 70°C
- Monolithic low power CMOS design
- Latch-up proof construction
- Input voltage range includes supplies
- Maximum drain source on resistance is 80 ohm
- Channel to channel RDS(ON) match is 5ohm
- TTL/CMOS compatible
- Switch on time is 400ns and switch off time is 200ns
- Charge injection is 20mV
Applications
Signal Processing, Portable Devices
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| IC Function | Analogue Switch |
| On State Resistance Max | 80ohm |
| IC Case / Package | DIP |
| No. of Channels | 2Channels |
| On Resistance Max | 80ohm |
| Mux / Demux Configuration | - |
| IC Mounting | Through Hole |
| Operating Temperature Max | 70°C |
| Qualification | - |
| SVHC | No SVHC (04-Feb-2026) |
| Power Supply Type | Dual Supply |
| Supply Voltage Range | ± 4.5V to ± 18V |
| No. of Pins | 16Pins |
| On Resistance Typ | 80ohm |
| Switch Configuration | SPDT |
| Interfaces | Parallel |
| Operating Temperature Min | 0°C |
| Product Range | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | ANALOG DEVICES |
| Part Number | IH5043CPE+ |
| Quantity | Each |

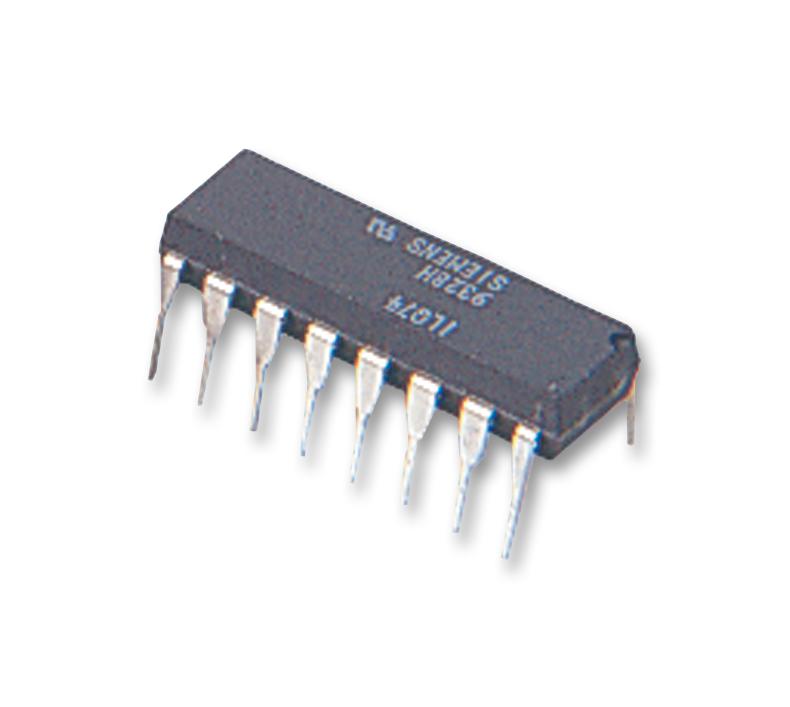

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
