Description
Product Overview

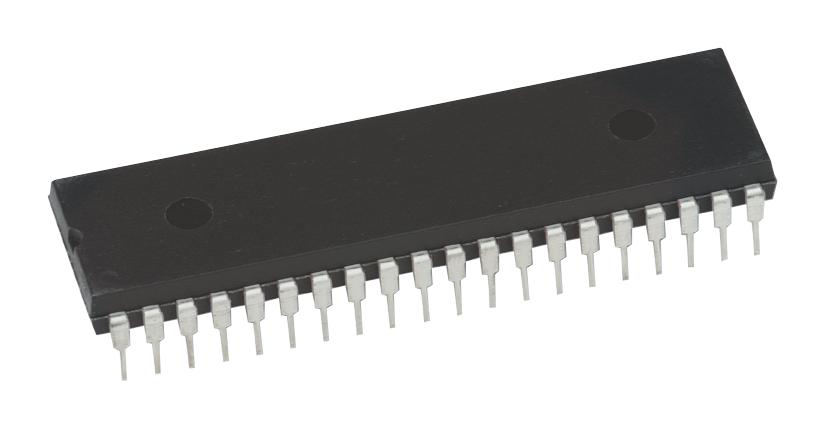

The MM5450YN is a LED Display Driver is monolithic MOS ICs fabricated in an N-channel, metal gate process. The technology produces low-threshold, enhancement-mode and ion-implanted depletion-mode devices. A single pin controls the LED display brightness by setting a reference current through a variable resistor connected to the supply.
- Continuous brightness control
- Serial data input
- No load signal requirement
- Wide power supply operation
- TTL compatibility
- 34 or 35 Outputs, 15mA capability
- Alphanumeric capability
Applications
Industrial, Test & Measurement, Metering, Clock & Timing, Sensing & Instrumentation
Product details
| Display Driver Type | LED Display Driver |
| No. of Segments | 7 |
| No. of Pins | 40Pins |
| Supply Voltage Max | 11V |
| Product Range | - |
| Operating Temperature Max | 85°C |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Digits | 5 |
| IC Case / Package | DIP |
| Supply Voltage Min | 4.75V |
| Interfaces | - |
| Operating Temperature Min | -40°C |
| MSL | - |
Other details
| Brand | MICROCHIP |
| Part Number | MM5450YN |
| Quantity | Each |
| Technical Data Sheet (277.74KB) EN | View or download |
| EOL Notices (138.54KB) EN | View or download |
| Product Change Notice (116.80KB) EN | View or download |
