Description
Product Overview

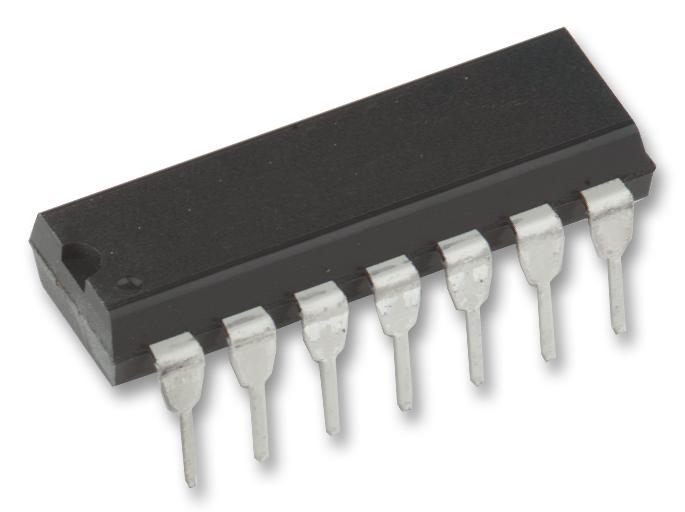

The MIC5800YN is a 4-bit parallel-input Latched Driver with high-voltage, high-current integrated circuits comprised of CMOS data latches, a bi-polar Darlington transistor driver for each latch and CMOS control circuitry for the common CLEAR, STROBE and OUTPUT ENABLE functions. The bi-polar/MOS combination provides an extremely low-power latch with maximum interface flexibility. Data input rates are greatly improved in these devices. With a 5V supply, they will typically operate at better than 5MHz. With a 12V supply, significantly higher speeds are obtained. The CMOS inputs are compatible with standard CMOS, PMOS and NMOS circuits. TTL or DTL circuits may require the use of appropriate pull-up resistors. The bi-polar outputs is suitable for use with relays, solenoids, stepping motors, LED or incandescent displays and other high-power loads. Both units have open-collector outputs and integral diodes for inductive load transient suppression.
- High voltage, current sink outputs
- Output transient protection
- Internal pull-down resistors
- Low-power CMOS latches
Applications
Communications & Networking
Product details
| Device Type | Latched |
| No. of Outputs | 4Outputs |
| Supply Voltage Max | 15V |
| No. of Pins | 14Pins |
| Operating Temperature Max | 85°C |
| MSL | - |
| Output Current | 500mA |
| Supply Voltage Min | 5V |
| IC Case / Package | DIP |
| Operating Temperature Min | -40°C |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | MICROCHIP |
| Part Number | MIC5800YN |
| Quantity | Each |
| Product Change Notice (435.92KB) EN | View or download |
| Technical Data Sheet (538.03KB) EN | View or download |
