Product Overview

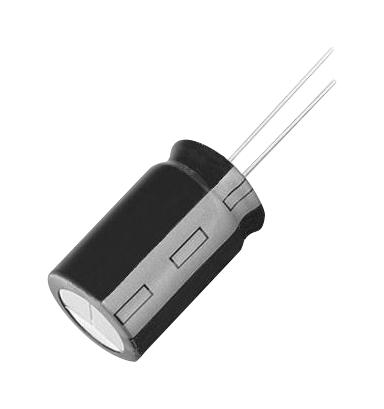

EEUFR1H151 is a FR-series, Type 'A' radial leaded aluminium electrolytic capacitor. It is built upon Panasonic's existing technology and allows for a quality, competitive product that better serves user requirements. This capacitor is suitable for switching mode adapters, line noise removal, and other products with long lifetime requirements. This series continues to provide excellent low ESR, high ripple current capabilities and can offer even longer endurance in the smaller cases and higher voltage options.
- Capacitance is 150µF with ±20% tolerance
- 5mm lead spacing
- Operating temperature range from -40°C to 105°C
- 12.5mm x 10mm product height x product diameter
- 1.17A ripple current
- Voltage(DC) is 50V
- Low ESR: down to just 12mohm (20˚C/100KHz)
Product details
| Capacitance |
150µF |
| Capacitance Tolerance |
± 20% |
| Lifetime @ Temperature |
6000 hours @ 105°C |
| Capacitor Case / Package |
- |
| Product Diameter |
10mm |
| Product Width |
- |
| Product Range |
FR Series |
| Ripple Current |
1.17A |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Voltage(DC) |
50V |
| Capacitor Terminals |
Radial Leaded |
| Polarity |
Polar |
| Lead Spacing |
5mm |
| Product Length |
- |
| Product Height |
12.5mm |
| ESR |
- |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
Other details
