Description
Product Overview

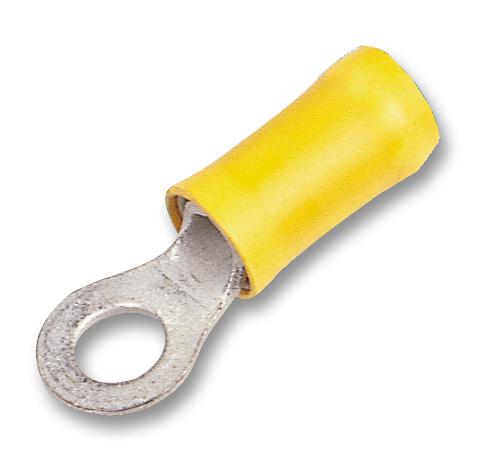

The PIDG series terminals designed for uniform reliability in the most difficult circuit environments. They consist of a tin-plated copper or tin-plated phosphor bronze body for spring spades, plus a copper and coloured insulation sleeve fitted over a terminal barrel. The specialized design of tool dies and the construction of the terminal allows for uniform insulation thickness under crimping pressure, transmitting this pressure evenly to the centre of the crimping area. The body has serrations for maximum contact and tensile strength. The insulation sleeves and the corresponding tooling are colour-coded by wire-size for easier identification.
- PIDG terminals have copper sleeve for improved wire insulation support
- Specific tooling dedicated for different volumes or circumstances is available
Warnings
Supplier claimed that this part no longer meet MIL Class 2 requirement.
Product details
| Stud Size - Metric | M4 |
| Wire Size AWG Max | 22AWG |
| Product Range | PIDG |
| Insulator Material | Nylon (Polyamide) |
| Stud Size - Imperial | #8 |
| Conductor Area CSA | 0.41mm² |
| Insulator Colour | Yellow |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | TE CONNECTIVITY - AMP |
| Part Number | 323916 |
| Quantity | Each |
| Product Change Notice (251.04KB) EN | View or download |
| Drawing (75.99KB) EN | View or download |
| Manufacturer Catalogue (1.61MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
