Description
Product Overview
The CA3102E18-22PB is a 3-contact Receptacle for front panel-mounting with square flange. It designates a receptacle for front panel mounting with solder pin contacts to solder into printed circuits.
- Rapid mating and unmating by a positive quarter turn bayonet locking mechanism
- Quick-mating 3-point reverse bayonet coupling, shock and vibration proof
- 500 mating cycles, IP67/68/69k environmental resistance
- Operating temperature range of -55°C to +125°C
- Insulation resistance is <gt/> 1000Mohm
- Resilient polychloroprene (neoprene) insulator
- Moisture and corrosion resistant
- Operating voltage is 50VAC
- Aluminium alloy body material with olive drab chromate over cadmium plating
- Copper alloy solder pin contacts with silver plating
Applications
Industrial, Industrial
Product details
| Product Range | CA Series |
| Circular Connector Shell Style | - |
| Circular Connector Contact Type | - |
| Insert Arrangement | 18-22 |
| Connector Body Plating | - |
| Contact Plating | - |
| Service Class | - |
| Equivalent Military Specification | MIL-DTL-5015 Series |
| No. of Contacts | 3Contacts |
| Coupling Style | - |
| Connector Body Material | Aluminium Alloy Body |
| Contact Material | Copper Alloy |
| Insert Rotation | - |
| SVHC | No SVHC (17-Dec-2014) |
Other details
| Brand | ITT CANNON |
| Part Number | CA3102E18-22PB |
| Quantity | Each |
| Technical Data Sheet (31.45KB) EN | View or download |

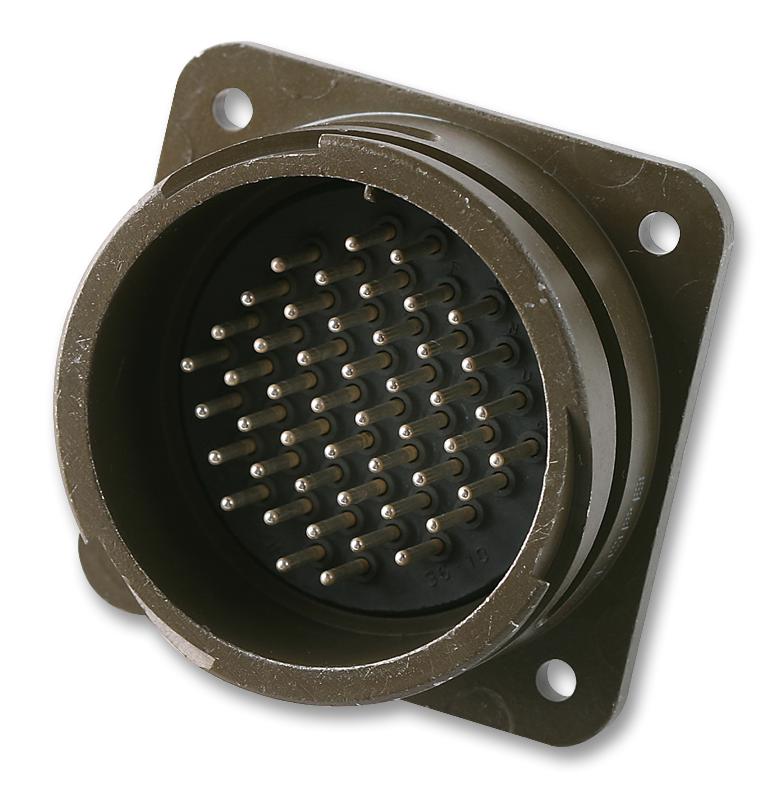

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
