Description
Product Overview

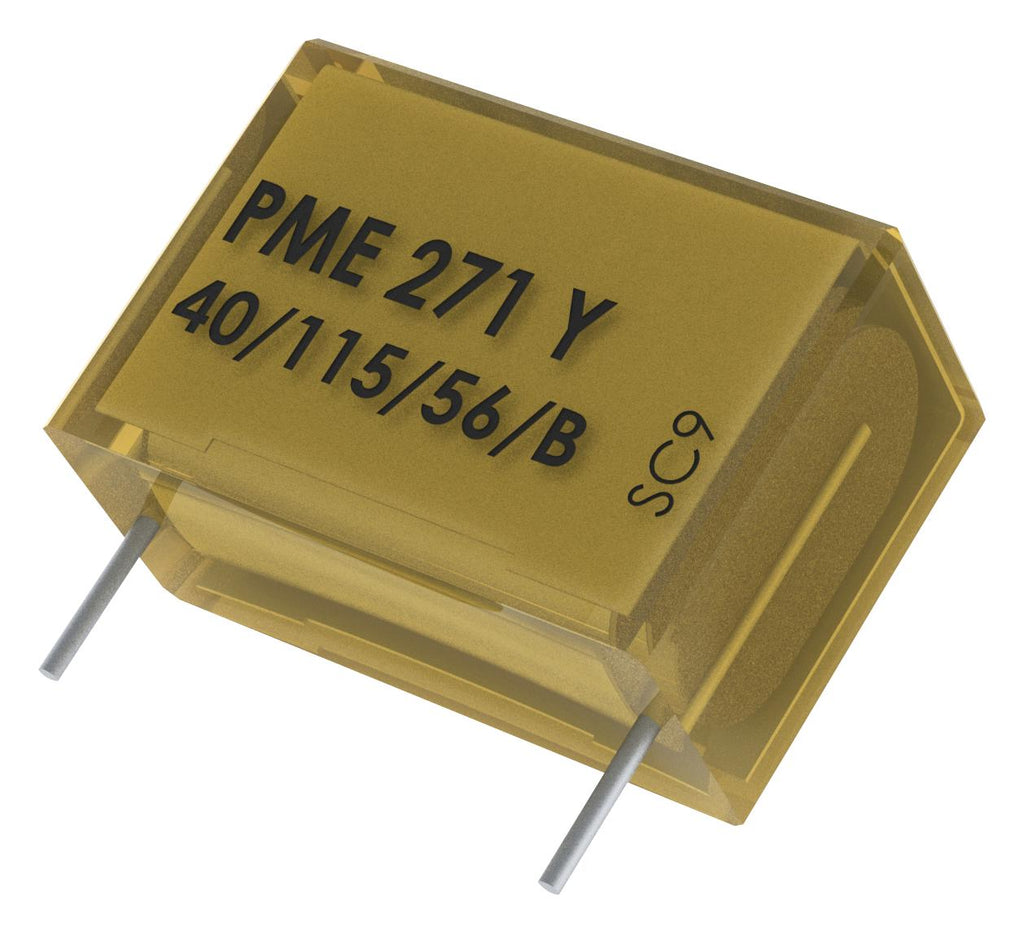

The PME271Y A–E Series is constructed of multilayer metallized paper encapsulated and impregnated in selfextinguishing material meeting the requirements of UL 94 V–0. Typical applications include worldwide use as electromagnetic interference suppressor in all Y2 applications, line-to-earth.
- Capacitance values ranges from 0.001µF to 0.1µF
- Capacitance range: 0.001 – 0.15 μF / Capacitance tolerance: ±20% for C <gt/> 0.1 μF, ±10% for C ≤ 0.1 μF
- Lead spacing: 10.2 – 25.4 mm
- Climatic category: 40/115/56/B, IEC 60068–1 / Operating temperature range of −40˚C to +115˚C
- Tape and reel packaging in accordance with IEC 60286–2
- ENEC, UL, CSA, CQC approved
- 100% screening factory test at 3000VDC
- Highest possible safety regarding active and passive flammability
- Excellent self healing properties
- High dV/dt capability
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Dielectric Type | Metallized Paper |
| Capacitance | 0.068µF |
| Suppression Class | Y2 |
| Voltage Rating X | - |
| dv/dt Rating | 1kV/µs |
| Lead Spacing | 20.3mm |
| Operating Temperature Max | 115°C |
| Qualification | - |
| Capacitor Case / Package | Radial Box - 2 Pin |
| Capacitance Tolerance | ± 20% |
| Capacitor Mounting | Through Hole |
| Voltage Rating Y | 300VAC |
| Humidity Rating | GRADE II (Test Condition A) |
| Operating Temperature Min | -40°C |
| Product Range | PME271Y/P272 Series |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | KEMET |
| Part Number | PME271YC5680MR30 |
| Quantity | Each |
