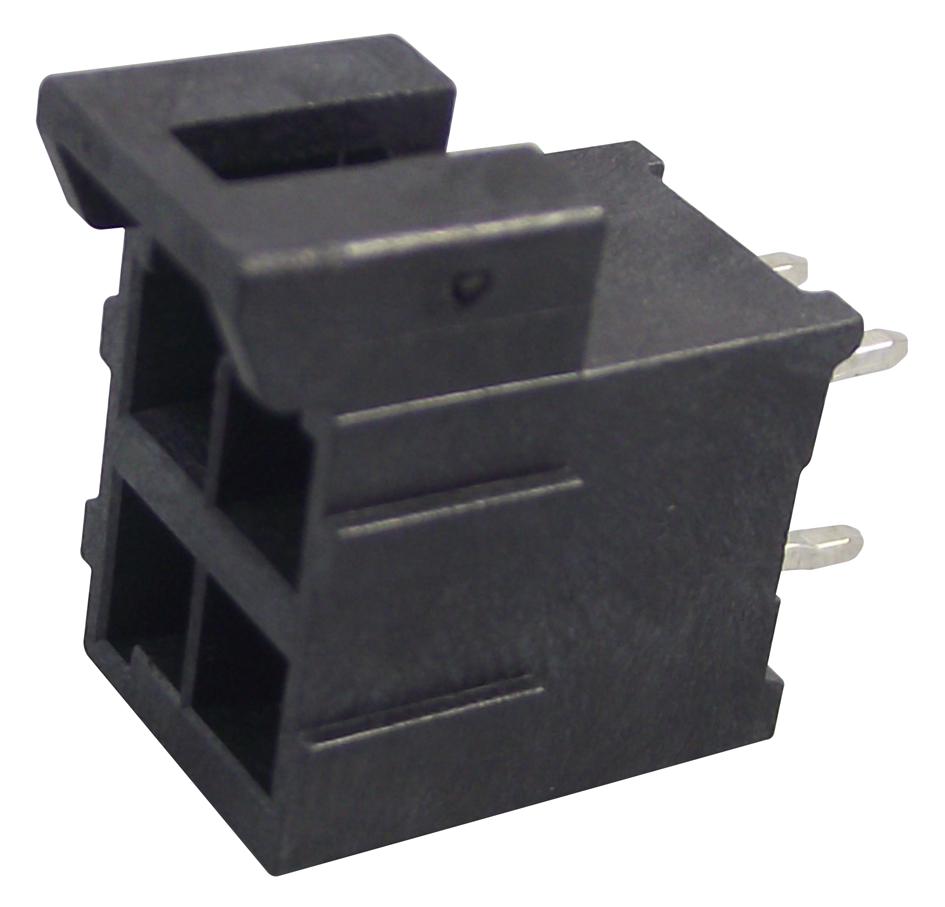

Product Overview
- High-density Ultra-Fit™ power connectors
- Eliminate same-circuit-size cross mating
- Optimize space savings and reduce terminal back-out with low mating force
- Nylon UL94V-0 housing
- Voltage (max) is 400V
- Current (max) is 14A
- Tin contact plating
- Contact resistance is 7mohm, insulation resistance is 100Mohm
- 3.50mm pitch
- Operating temperature range from -40°C to +105°C
- Housing: Nylon UL 94V-0
- Voltage (max): 400V
- Current (max): 14A
- Contact Plating: Gold
- Contact Resistance: 7mΩ
- Insulation Resistance: 100MΩ
- Pitch: 3.50mm
- Operating Temperature: -40°C to +105°C
Applications
Automotive, Communications & Networking, Consumer Electronics, Aerospace, Defence, Military, Industrial, Lighting, Medical
Product details
| Connector Systems |
Wire-to-Board |
| No. of Rows |
2Rows |
| Contact Termination Type |
Through Hole Straight |
| Connector Shroud |
Shrouded |
| Contact Plating |
Gold Plated Contacts |
| Connector Body Material |
LCP (Liquid Crystal Polymer) Body |
| Contact Current Rating |
11A |
| Pitch Spacing |
3.5mm |
| No. of Contacts |
8Contacts |
| Product Range |
Ultra-Fit 172298 Series |
| Contact Material |
Copper Alloy |
| Connector Type |
PCB Header |
| Connector Orientation |
Straight |
| SVHC |
No SVHC (04-Feb-2026) |
