| ₹ 67.11 includes GST and import duties. | |
| B2B customers can avail ₹ 10.23 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

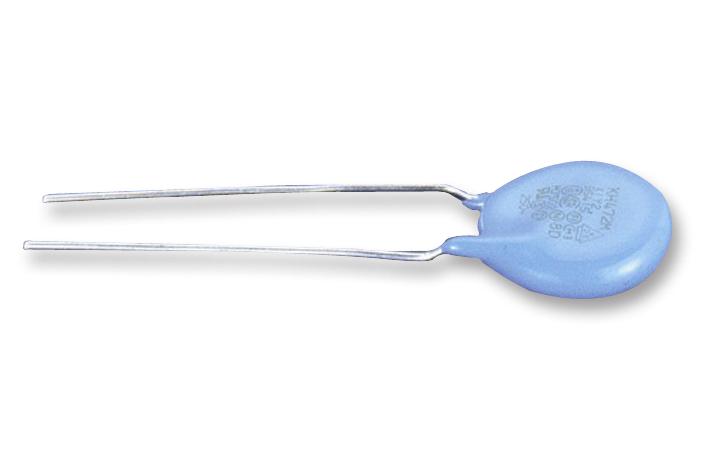

The DE1 series capacitors from Murata are IEC60384-14 class X1, Y1 safety standard certified lead type ceramic capacitors. These X/Y capacitor used for AC line filters of switching power supply, AC adaptors and primary to secondary coupling. These capacitors are classified into temperature compensating and high dielectric constant types depending on the change in electrostatic capacitance due to change in temperature.
- Capacitance value range from 10pF to 4700pF
- Rated voltage range from 250VAC to 300VAC
- Capacitor diameter varies from 7mm to 12mm and are radial leaded
- Temperature characteristics are classified according to JIS standard
- Maximum operating temperature of 125°C
- Coated with a flame retardant epoxy resin (equivalent to UL94V-0)
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management, Safety
Notes
Not Recommended for New Design
Product details
| Capacitance | 2200pF |
| Suppression Class | X1 / Y1 |
| Voltage Rating Y | 250V |
| Capacitor Mounting | Through Hole |
| Product Range | DE1 Series |
| Operating Temperature Max | 85°C |
| Capacitance Tolerance | ± 20% |
| Voltage Rating X | 250V |
| Capacitor Case / Package | Radial Leaded |
| Lead Spacing | 10mm |
| Operating Temperature Min | -25°C |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | MURATA |
| Part Number | DE1E3KX222MA4BN01F |
| Quantity | Each |
| Technical Data Sheet (94.75KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 65.77 |
| 3-5 | ₹ 65.1 |
| 5-10 | ₹ 63.75 |
| 10+ | ₹ 62.41 |
Bulk discount will be automatically applied during checkout based on quantity.
