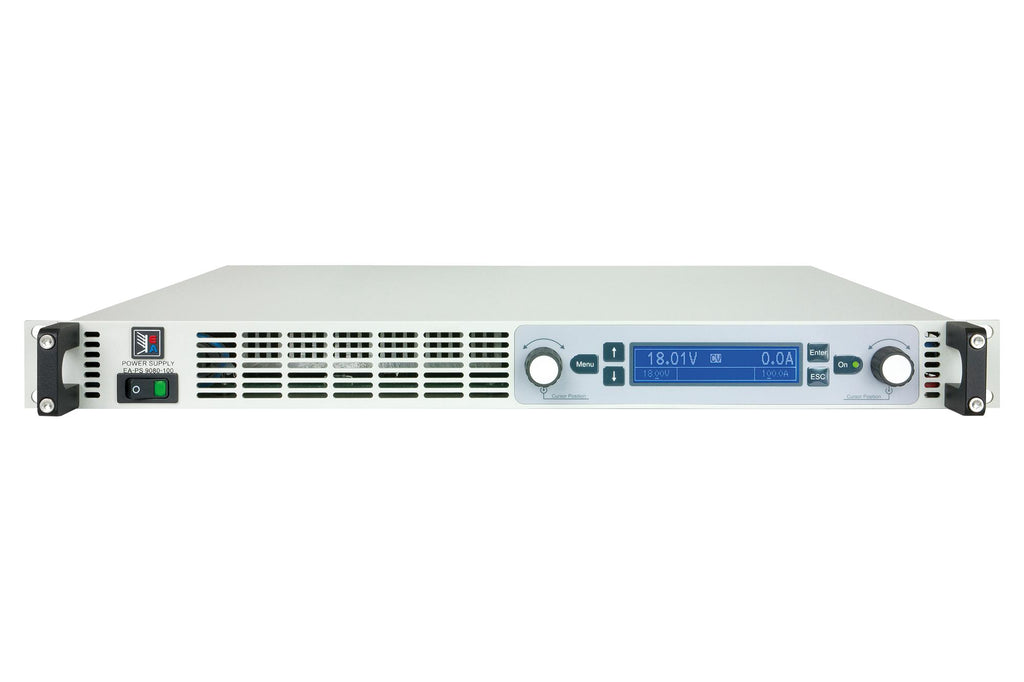

EA ELEKTRO-AUTOMATIK EA-PS 9080-50 1U Modular Power Supply, 1 Outputs, 1.5 kW, Programmable, 0 V, 80 V, 50 A

This high-density programmable laboratory power supply series PS 9000 1U is controlled by a high-performance µ-processor controller with up to 16-bit of resolution. It features the superior flexible ”auto-ranging” output for a usage at either high voltage or high current as required, within nominal power rating. It is equipped with a mono-chrome display with U/I//P values shown with up to 4 dig. It provides for a highly stable DC output at low ripple and very fine adjustments. For external automated control, this series is equipped with an “on-board” 3-way interface (USB, LAN/Ethernet and 0-5V/0-10V isolated analogue). This series is a compact and versatile DC power testing tool for low-to-medium power components and devices providing for accurate and reproducible test data.

• 19" 1U compact format
• Superior Autoranging Output
• Standard "on board" 3-way interface (USB/LAN/Analogue)
• Single phase input 220-240V~ even for 3kW units
• Versatile control software
• Temperature controlled fans for cooling
• EMC according to EN 55022 Class B
• SCPI command language supported

Applications

Test & Measurement, Maintenance & Repair

Notes

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
