Description
Product Overview
The Combo D D*MM series Combination D Subminiature Connectors for the advantages of an industry standard shield I/O interconnect, with the flexibility of a customized special, designed for any application. This connector system is ideal for applications that require optimization of space while improving overall shielding. Combo D® accomplishes this by combining multiple interconnect types into one fully shielded product, decreasing the number I/O interfaces and reducing the possibility of EMI/RFI leakage.
- Standard and European Footprints
- Pre-installed 75/50 coaxial or high power contact
- Vertical standoffs or 90° brackets
- 90° or Straight PCB
- PC Boards up to 3.2mm thick
- PCB Variants available with boardlocks and/or screw locks (#4-40 or M3)
- High voltage up to 2800 VAC
- UL94V-0 Flammability rating
- -55 to 125°C Operating temperature
Applications
Communications & Networking, Computers & Computer Peripherals, Automotive, Mining, Oil & Gas, Aerospace, Defence, Military, Sensing & Instrumentation, Industrial
Product details
| Product Range | Combo D D*MM |
| Gender | Plug |
| Contact Type | 3 Power |
| Connector Mounting | Through Hole Mount |
| Contact Material | Copper Alloy |
| SVHC | No SVHC (17-Dec-2014) |
| Insert Arrangement | DA-3W3 |
| No. of Contacts | 3Contacts |
| Contact Termination Type | Solder |
| Connector Body Material | Steel Body |
| Contact Plating | Gold Plated Contacts |
Other details
| Brand | ITT CANNON |
| Part Number | DAMM3W3P |
| Quantity | Each |
| Technical Data Sheet (30.40KB) EN | View or download |

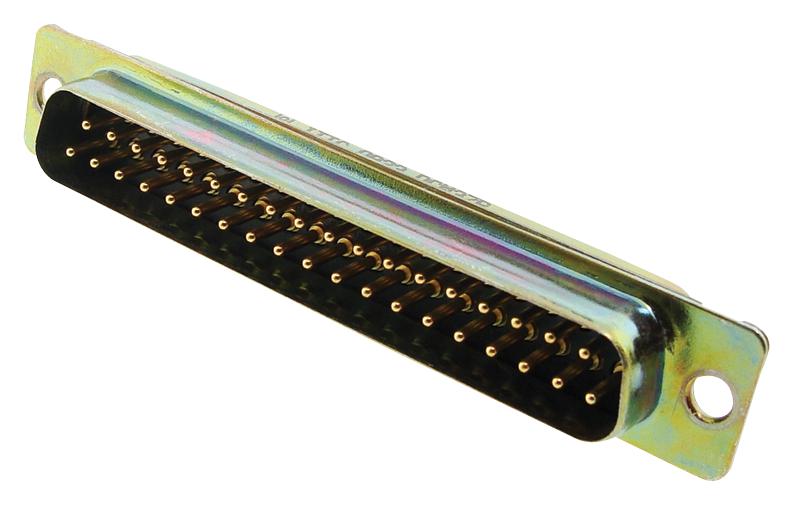

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2353.63 |
| 3-5 | ₹ 2329.61 |
| 5-10 | ₹ 2281.58 |
| 10+ | ₹ 2233.54 |
Bulk discount will be automatically applied during checkout based on quantity.
