| ₹ 131.76 includes GST and import duties. | |
| B2B customers can avail ₹ 20.09 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview
The VS-3EJH02-M3/6B is a Hyperfast™ Recovery Rectifier specifically designed with optimized performance of forward voltage drop. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characteristics. It is intended for use in snubber, boost, piezo-injection, as high frequency rectifiers and free-wheeling diodes. The extremely optimized stored charge and low recovery current minimize the switching losses and reduce power dissipation in the switching element.
- Reduced Qrr and soft recovery
- Low forward voltage drop
- Low leakage current
- Meets MSL level 1
- Meets JESD 201 class 2 whisker test
Applications
Power Management, Industrial, Lighting
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Repetitive Peak Reverse Voltage | 200V |
| Diode Configuration | Single |
| Reverse Recovery Time | 30ns |
| Operating Temperature Max | 175°C |
| No. of Pins | 2 Pin |
| Qualification | - |
| Average Forward Current | 3A |
| Forward Voltage Max | 930mV |
| Forward Surge Current | 85A |
| Diode Case Style | DO-221AC |
| Product Range | FRED Pt® SlimSMA |
| SVHC | Lead (04-Feb-2026) |
Other details
| Brand | VISHAY |
| Part Number | VS-3EJH02-M3/6B |
| Quantity | Each |
| Product Change Notice (142.69KB) EN | View or download |
| Technical Data Sheet (133.00B) EN | View or download |
| Enhanced Product Overview (850.64KB) EN | View or download |

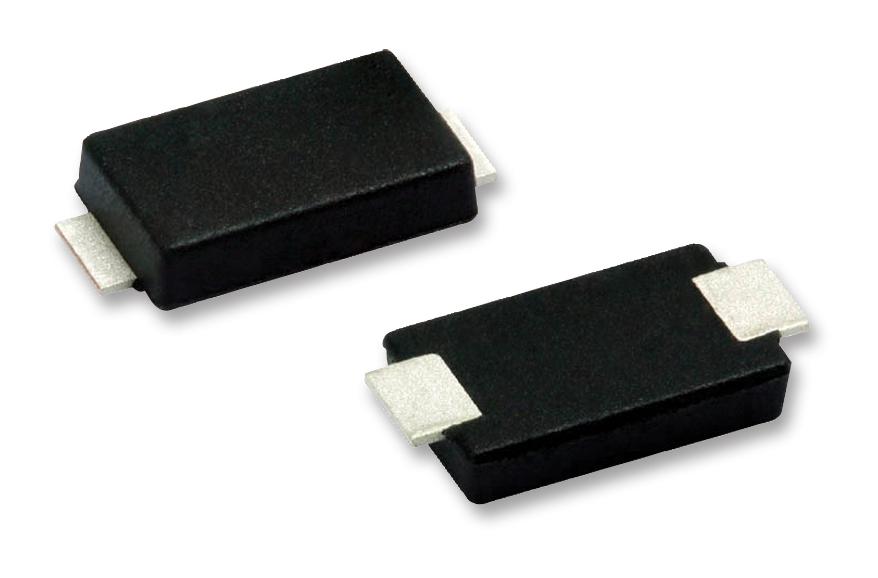

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 129.12 |
| 3-5 | ₹ 127.81 |
| 5-10 | ₹ 125.17 |
| 10+ | ₹ 122.54 |
Bulk discount will be automatically applied during checkout based on quantity.
