Product Overview
B32673P series is a metallized polypropylene film capacitor (MKP) for PFC (Power Factor Correction) applications. Capacitors used for power factor correction reduce energy costs by eliminating reactive power and harmonics from power lines.
- 22.5mm lead spacing and 0.8mm lead diameter
- Wound capacitor technology
- Very compact design
- Very high ripple and peak current
- High frequency AC operation capability and high voltage capability
- Excellent self-healing property
- AEC-Q200D compliant
- Parallel wire leads, lead free, tinned
- Plastic case (UL 94 V-0) and epoxy resin sealing
- Max operating temperature of 125°C and climatic category (IEC 60068-1:2013): 55/110/56
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
0.56µF |
| Typical Applications |
Single-Phase PFC |
| Voltage(AC) |
200V |
| Humidity Rating |
GRADE II (Test Condition A) |
| Lead Spacing |
22.5mm |
| Peak Current |
- |
| ESR |
- |
| Product Length |
26.5mm |
| Product Height |
15mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 10% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
630V |
| Capacitor Terminals |
PC Pin |
| dv/dt Rating |
130V/µs |
| RMS Current (Irms) |
- |
| Product Diameter |
- |
| Product Width |
6mm |
| Ripple Current |
- |
| Product Range |
B32673P Series |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details

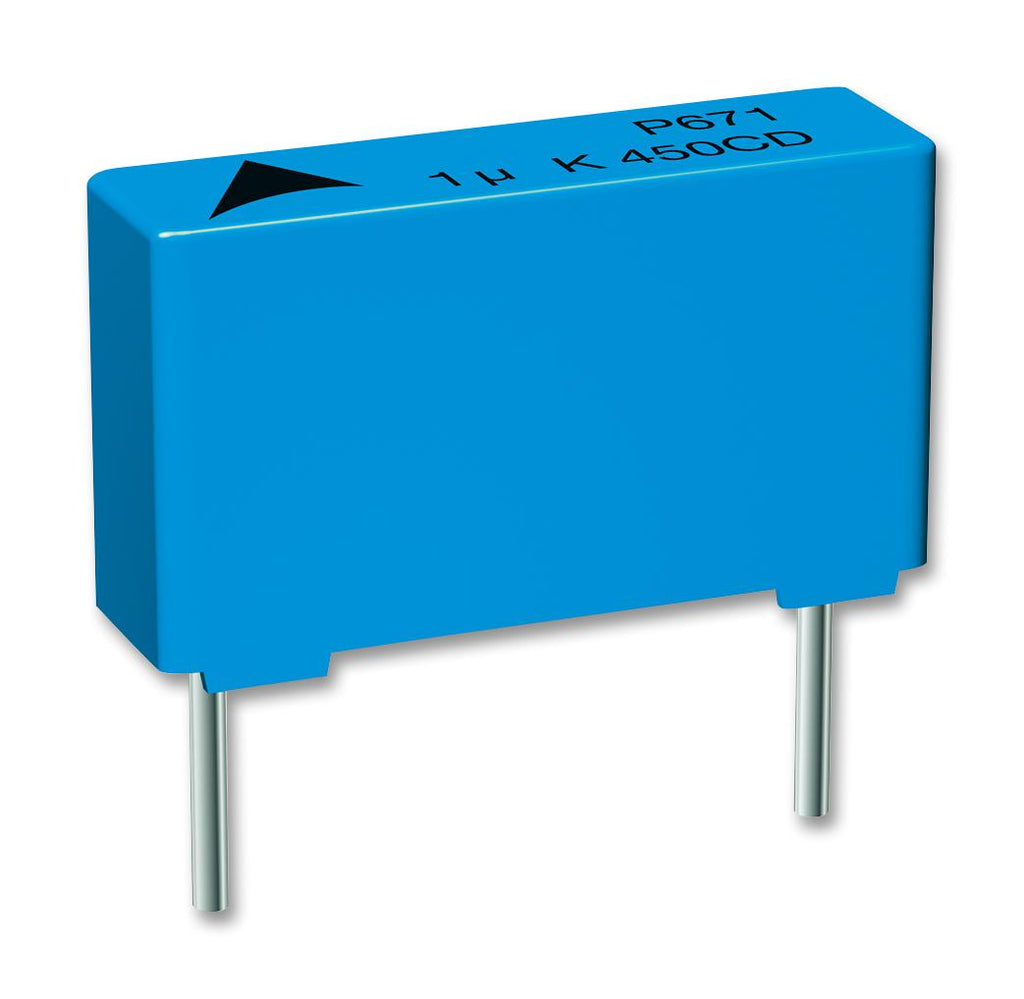

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
