| ₹ 121.52 includes GST and import duties. | |
| B2B customers can avail ₹ 18.53 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

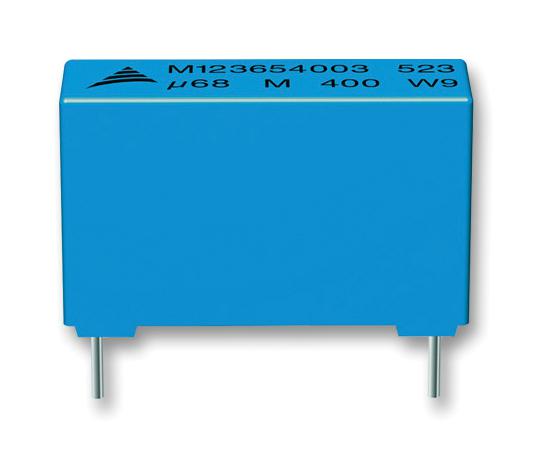

The B32523Q3105K000 is a metalized polyester Film Capacitor with radial leaded lead-free tin-plated parallel wire lead terminals, polyethylene terephthalate (polyester, PET) dielectric, plastic case (UL94V-0) and epoxy resin sealing (UL94V-0). The B32523 series is suitable for general purpose (wound), coupling and decoupling.
- High pulse strength
- High contact reliability
- Halogen-free
- UL94V-0 Flammability rating
Applications
Industrial, Electronics Design, Power Management
Product details
| Dielectric Type | Metallized PET Stacked |
| Capacitance | 1µF |
| Voltage(AC) | 160V |
| Capacitor Mounting | Through Hole |
| Humidity Rating | GRADE II (Test Condition A) |
| Product Length | 26.5mm |
| Product Height | 15mm |
| Operating Temperature Min | -55°C |
| Qualification | AEC-Q200 |
| Capacitor Case / Package | Radial Box - 2 Pin |
| Capacitance Tolerance | ± 10% |
| Voltage(DC) | 250V |
| Capacitor Terminals | PC Pin |
| Lead Spacing | 22.5mm |
| Product Width | 6mm |
| Product Range | B32523 Series |
| Operating Temperature Max | 125°C |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | TDK |
| Part Number | B32523Q3105K000 |
| Quantity | Each |
| Technical Data Sheet (71.00B) EN | View or download |
| Product Change Notice (137.99KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 119.09 |
| 3-5 | ₹ 117.87 |
| 5-10 | ₹ 115.44 |
| 10+ | ₹ 113.01 |
Bulk discount will be automatically applied during checkout based on quantity.
