Description
Product Overview

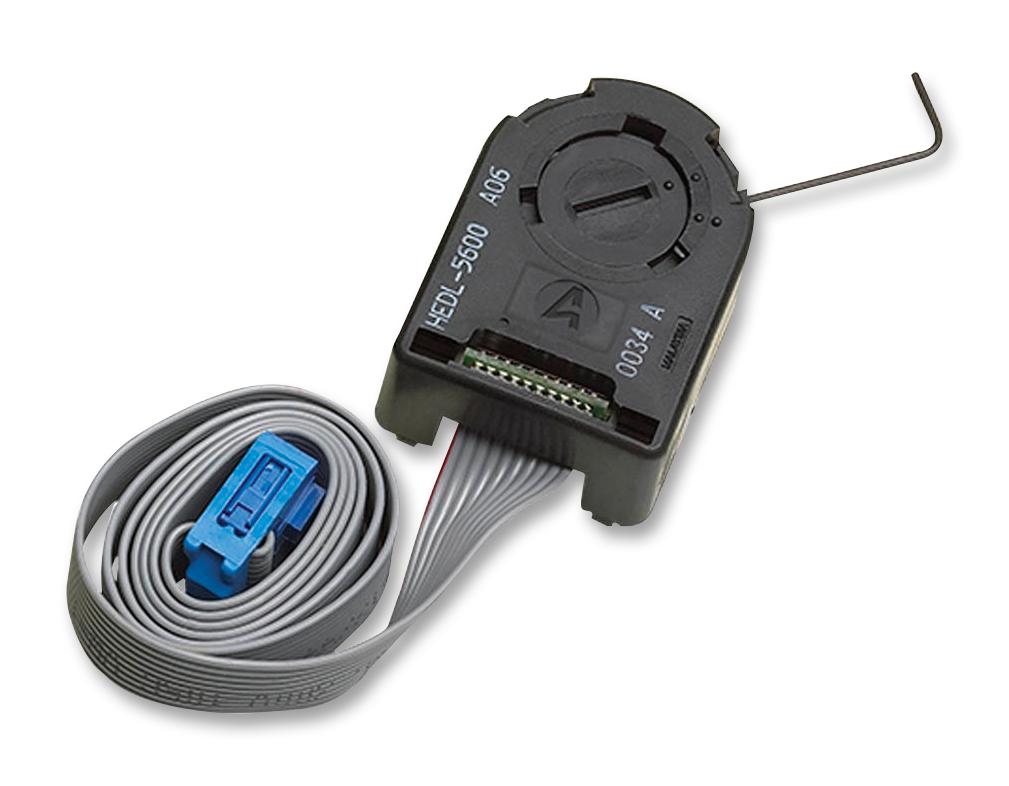

The HEDL-5540#A12 is a 3-channel Encoder Line Driver for HEDS-55XX/56XX series and the HEDS-9000/9100/9200/9040/9140 series encoders. The line driver offers enhanced performance when the encoder is used in noisy environments or when it is required to drive long distances. The 70 degrees C version utilizes an industry standard line driver IC (26LS31) which provides complementary outputs for each encoder channel. The 100 degrees C version utilizes an industry standard line driver IC, 26C31, which provides complementary outputs for each encoder channel. Thus, the output of the line driver encoder is A, A\, B, B\ and I/I\ for three channel versions. Suggested line receivers are 26LS32 and 26LS33.
- Complementary outputs
- Industry standard line driver IC
- Single 5V supply
- Onboard bypass capacitor
- Rotary motion
- 500CPR Resolution
- -40 to 100°C Operating temperature
Applications
Industrial
Product details
| Encoder Technology | Optical |
| Encoder Resolution | 500PPR |
| Orientation | Vertical |
| Encoder Mounting | Screw Mount |
| Rotational Speed Max | 30000rpm |
| No. of Channels | 3Channels |
| Shaft Length | - |
| Supply Voltage Min | 4.5V |
| Operating Temperature Min | -40°C |
| IP Rating | - |
| Encoder Type | Incremental |
| No. of Detents | 0 Detents |
| Encoder Output | Line Driver |
| Product Range | HEDL-55XX Series |
| Rotational Life Cycles | - |
| Shaft Type | No Shaft |
| Shaft Diameter | 6mm |
| Supply Voltage Max | 5.5V |
| Operating Temperature Max | 100°C |
| Termination | Cable with Connector |
Other details
| Brand | BROADCOM |
| Part Number | HEDL-5540#A12 |
| Quantity | Each |
| Product Change Notice (536.46KB) EN | View or download |
| Technical Data Sheet (122.25KB) EN | View or download |
