Product Overview
The F862 Series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin in a box material recognized by UL 94 V–0. The F862 Series is ideal for harsh environmental conditions and meets the demanding Automotive Electronics Council's AEC–Q200 qualification requirements.Typical applications include connection in series with the mains, capacitive power supplies and energy meters, with special emphasis in automotive applications for severe ambient conditions.
- Approvals: ENEC, UL, cUL, CQC
- Rated voltage: 310 VAC 50/60 Hz
- Capacitance range: 0.1 – 4.7 μF / Capacitance tolerance: ±20%, ±10%
- Climatic category: 40/110/56, IEC 60068-1 / Operating temperature range of -40˚C to +110˚C
- Lead spacing: 15.0 – 27.5 mm
- RoHS Compliant and lead-free terminations
- 100% screening factory test at 1,900 VDC
- AEC -Q200 automotive qualified
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
0.56µF |
| Suppression Class |
X2 |
| Voltage Rating X |
310VAC |
| dv/dt Rating |
200V/µs |
| Lead Spacing |
22.5mm |
| Operating Temperature Max |
110°C |
| Qualification |
AEC-Q200 |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 10% |
| Capacitor Mounting |
Through Hole |
| Voltage Rating Y |
- |
| Humidity Rating |
GRADE II (Test Condition B) |
| Operating Temperature Min |
-40°C |
| Product Range |
0 |
| SVHC |
No SVHC (04-Feb-2026) |
Other details

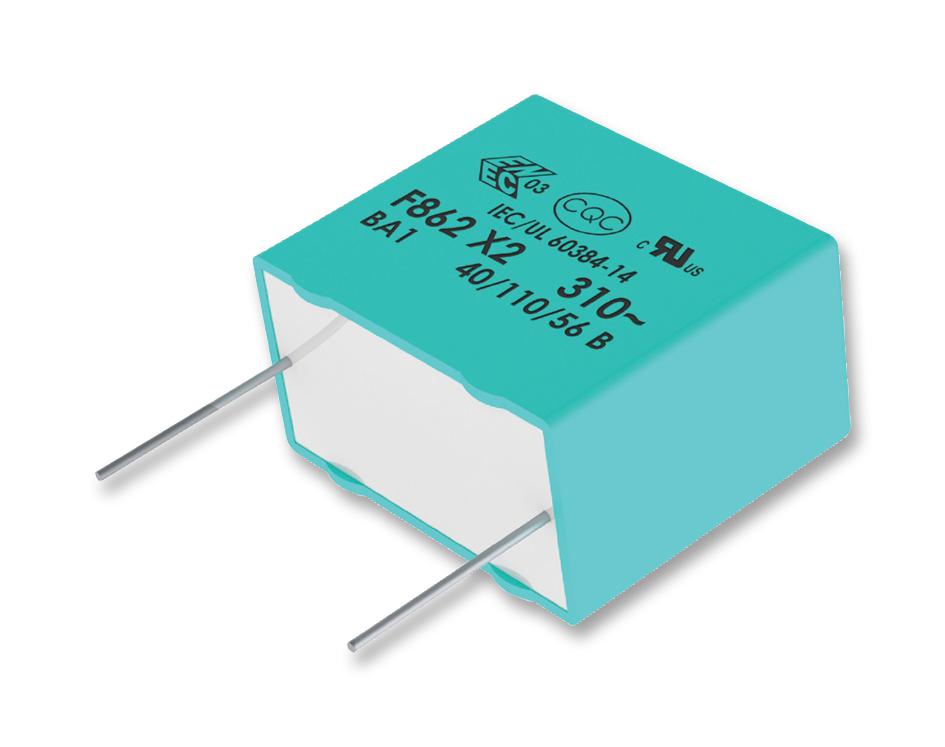

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
