Description
Product Overview

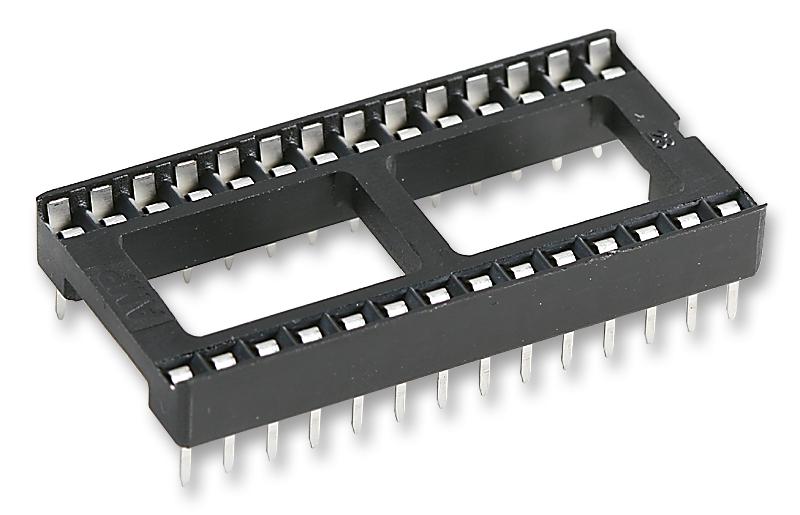

The 1-2199299-2 is a 28-way through hole DIP Socket with 30% glass filled PBT, thermoplastic housing, tin/lead-plated brass/copper sleeve and tin-plated phosphor bronze contacts. Dual leaf mating contact, standard socket style and polarisation mating alignment type.
- Vertical mounting angle
- 20mΩ Contact resistance
- 1000MΩ Insulation resistance
- 250VAC/DC Voltage rating
- 1A Current rating
- 1000VAC Minimum dielectric withstanding voltage
- -40 to 105°C Operating temperature range
Applications
Industrial
Product details
| No. of Contacts | 28Contacts |
| Pitch Spacing | 2.54mm |
| Row Pitch | 15.24mm |
| Contact Plating | Tin Plated Contacts |
| Connector Type | DIP Socket |
| Product Range | - |
| Contact Material | Phosphor Bronze |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 1-2199299-2 |
| Quantity | Each |
| One Page Summary (506.94KB) EN | View or download |
| Drawing (81.36KB) EN | View or download |
| Drawing (86.76KB) EN | View or download |
| Product Change Notice (430.82KB) EN | View or download |
