Description
Product Overview

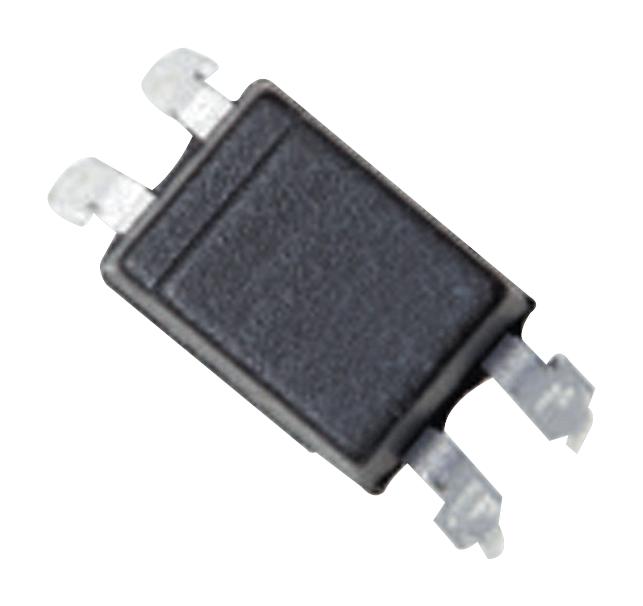

The FOD814SD is a 1-channel 4-pin surface-mount high operating temperature Phototransistor Optocoupler consists of two gallium arsenide infrared emitting diodes, connected in inverse parallel, driving a silicon phototransistor output. It is suitable for AC line monitor and telephone line interface.
- AC input response
- Applicable to Pb-free IR reflow soldering
- Minimum BVCEO of 70V guaranteed
- ±50mA Continuous forward current
- -55 to +105°C Operating temperature range
Applications
Sensing & Instrumentation, Communications & Networking
Product details
| No. of Channels | 1 Channel |
| No. of Pins | 4Pins |
| Isolation Voltage | 5kV |
| Collector Emitter Voltage V(br)ceo | 70V |
| SVHC | No SVHC (25-Jun-2025) |
| Optocoupler Case Style | Surface Mount DIP |
| Forward Current If Max | 50mA |
| CTR Min | 20% |
| Product Range | - |
Other details
| Brand | ONSEMI |
| Part Number | FOD814SD |
| Quantity | Each |
| Technical Data Sheet (482.07KB) EN | View or download |
| Technical Data Sheet (717.67KB) EN | View or download |
| Product Change Notice (256.70KB) EN | View or download |
