Description
Product Overview
The PIC24FJ128GB202-I/SP is a high-performance PIC24F family eXtreme low power technology 16-bit Microcontroller packs powerful PIC®(RISC) architecture with up to 16 MIPS of performance at 3.3V. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 128kB of addressable program memory size, 8192bytes of data memory size, 20 general-purpose I/O pins and 9-channel 10/12-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 32MHz with wide operating voltage of 2 to 3.6V.
- XLP Technology for Sleep current at low as 20nA
- Brown-out reset (BOR)
- Low voltage detection (LVD)
- Power on reset (POR)
- Watch dog timer (WDT)
- Hardware RTCC
- 6-Channel DMA
- nanoWatt XLP technology
- Three comparators
- Charge time measurement unit (CTMU)
- Peripheral pin select (PPS)
- full-speed USB 2.0 Device/Host/OTG
- 6x Capture/Compare/PWM (CCP)
- Hardware encryption
- Five 16-bit timers
- Two 32-bit timers
Applications
Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security, Multimedia, Communications & Networking, Audio
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range | PIC24 Family PIC24FJGB Series Microcontrollers |
| Data Bus Width | 16 bit |
| Program Memory Size | 128KB |
| IC Case / Package | SDIP |
| Interfaces | I2C, SPI, UART, USB |
| ADC Channels | 9Channels |
| Supply Voltage Min | 2V |
| Operating Temperature Min | -40°C |
| IC Mounting | Through Hole |
| MCU Family | PIC24 |
| MSL | - |
| Device Core | PIC24 |
| Operating Frequency Max | 32MHz |
| No. of Pins | 28Pins |
| No. of I/O's | 20I/O's |
| RAM Memory Size | 8KB |
| ADC Resolution | 10Bit, 12Bit |
| Supply Voltage Max | 3.6V |
| Operating Temperature Max | 85°C |
| MCU Series | PIC24FJ GB |
| Qualification | - |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | MICROCHIP |
| Part Number | PIC24FJ128GB202-I/SP |
| Quantity | Each |
| Product Change Notice (346.27KB) EN | View or download |
| Technical Data Sheet (4.07MB) EN | View or download |

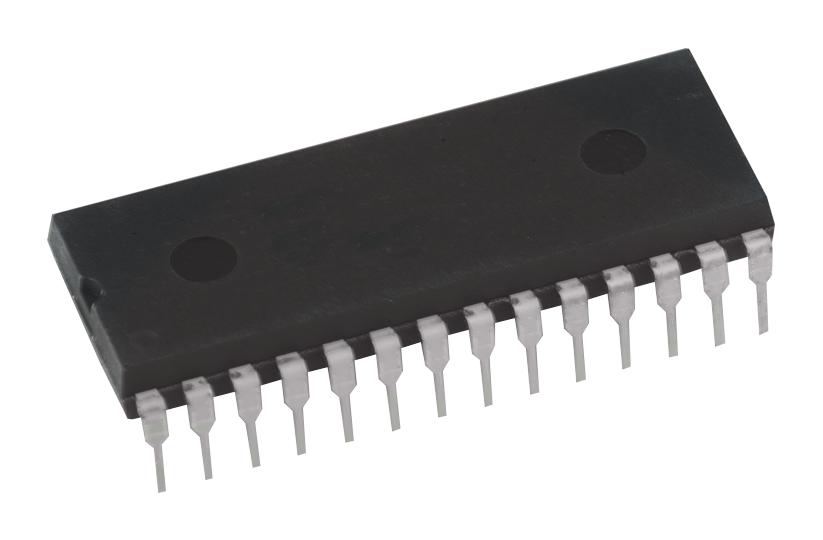

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
