Description
Product Overview

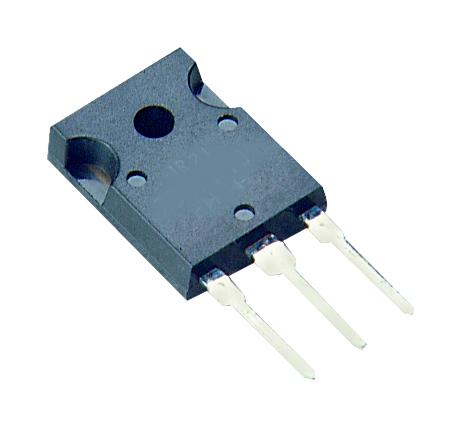

The IXFH94N30P3 is a single N-channel enhancement-mode Power MOSFET with fast intrinsic diode (HiPerFET™). It features low static drain-to-source ON-resistance and high power density. It is suitable for DC-to-DC converters, laser drivers, switch-mode and resonant-mode power supplies.
- Avalanche rating
- Low Qg
- Low package inductance
Applications
Power Management, Motor Drive & Control, Robotics
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Channel Type | N Channel |
| Continuous Drain Current Id | 94A |
| Transistor Case Style | TO-247 |
| Rds(on) Test Voltage | 10V |
| Power Dissipation | 1.04kW |
| Operating Temperature Max | 150°C |
| Qualification | - |
| SVHC | No SVHC (17-Jan-2023) |
| Drain Source Voltage Vds | 300V |
| Drain Source On State Resistance | 0.036ohm |
| Transistor Mounting | Through Hole |
| Gate Source Threshold Voltage Max | 5V |
| No. of Pins | 3Pins |
| Product Range | - |
| MSL | - |
Other details
| Brand | IXYS SEMICONDUCTOR |
| Part Number | IXFH94N30P3 |
| Quantity | Each |
| Technical Data Sheet (197.39KB) EN | View or download |
| Product Change Notice (320.77KB) EN | View or download |
