Description
Product Overview

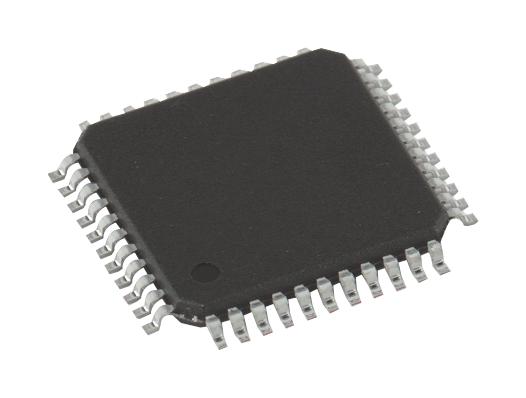

The MKE02Z64VLD4 is a 32-bit Kinetis KE02 Robust Microcontroller based on ARM Cortex-M0+ RISC architecture core operates at a maximum frequency of 40MHz. The device incorporates 64kB internal flash, 4kB internal RAM, one 12-bit SAR A/D converter, two 6-bit D/A converter and 37 general-purpose I/O pins. This device also features communication interfaces like three UART modules, two SPI modules and one I2C module.
- Single cycle 32 x 32-bit Multiplier
- Single cycle I/O access port
- Oscillator (OSC) - Supports 32.768kHz crystal or 4MHz to 20MHz crystal or ceramic resonator
- Internal clock source (ICS)
- Internal 1kHz Low-power oscillator (LPO)
- Power management module (PMC) with three power modes - run, wait, stop
- Low-voltage detection (LVD) with reset or interrupt, selectable trip points
- Watchdog with independent clock source (WDOG)
- Programmable cyclic redundancy check module (CRC)
- Serial wire debug interface (SWD)
- Bit manipulation engine (BME)
- 64-bit Unique identification (ID) number per chip
- Two up to 8-bit Keyboard interrupt modules (KBI)
- External interrupt (IRQ)
- Two analog comparators containing a 6-bit DAC and programmable reference input (ACMP)
- 6-channel Flex timer/PWM (FTM)
- Two 2-channel Flex timer/PWM (FTM)
- 2-channel Periodic interrupt timer (PIT)
- Real-time clock (RTC)
Applications
Industrial
Product details
| Product Range | Kinetis E Family KE0x Series Microcontrollers |
| Data Bus Width | 32 bit |
| Program Memory Size | 64KB |
| IC Case / Package | LQFP |
| Interfaces | I2C, SPI, UART |
| ADC Channels | 16Channels |
| Supply Voltage Min | 2.7V |
| Operating Temperature Min | -40°C |
| IC Mounting | Surface Mount |
| MCU Series | KE0x |
| MSL | MSL 3 - 168 hours |
| Device Core | ARM Cortex-M0+ |
| Operating Frequency Max | 40MHz |
| No. of Pins | 44Pins |
| No. of I/O's | 37I/O's |
| RAM Memory Size | 4KB |
| ADC Resolution | 12Bit |
| Supply Voltage Max | 5.5V |
| Operating Temperature Max | 105°C |
| MCU Family | Kinetis E |
| Qualification | - |
| SVHC | No SVHC (27-Jun-2024) |
Other details
| Brand | NXP |
| Part Number | MKE02Z64VLD4 |
| Quantity | Each |
| Technical Data Sheet (747.64KB) EN | View or download |
| Technical Data Sheet (1.58MB) EN | View or download |
| Product Change Notice (273.46KB) EN | View or download |
