Product Overview

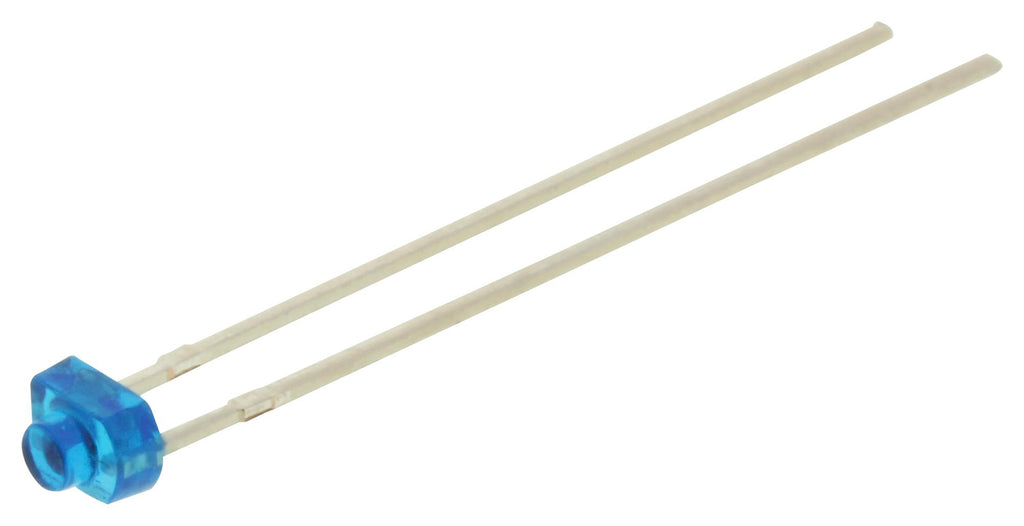

The CQY36N is a 950nm Infrared Emitting Diode with GaAs technology moulded in a clear plastic miniature package without lens. It is suitable for use in radiation source in near infrared range.
- High reliability
- Low forward voltage
- Suitable for high pulse current operation
- Good spectral matching with Si photodetectors
- Package matches with detector BPW16N
Product details
| Peak Wavelength |
950nm |
| Diode Case Style |
T-3/4 (1.8mm) |
| Rise Time |
800ns |
| Forward Current If(AV) |
50mA |
| Operating Temperature Min |
-25°C |
| Automotive Qualification Standard |
- |
| MSL |
- |
| Angle of Half Intensity |
55° |
| Radiant Intensity (Ie) |
800mW/Sr |
| Fall Time tf |
- |
| Forward Voltage VF Max |
1.3V |
| Operating Temperature Max |
85°C |
| Product Range |
- |
| SVHC |
No SVHC (07-Nov-2024) |
