Description
Product Overview

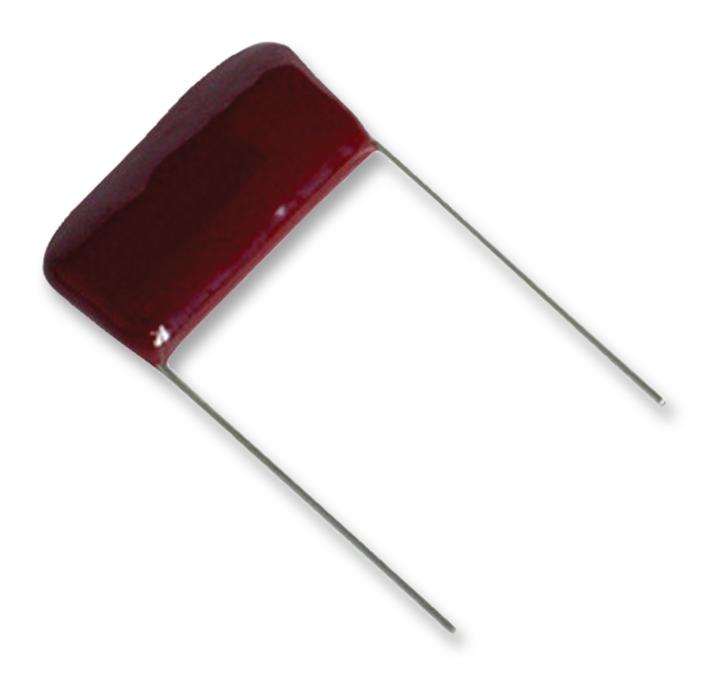

The PHE840MB6470MB16R17 is a Film Capacitor for worldwide use as electromagnetic interference suppressor in all X2 and across-the-line applications. Metalized polypropylene film encapsulated with self-extinguishing epoxy resin in a box of material recognized to UL94V-0.
- UL94V-0 Flammability rating
- ENEC, UL, cUL approved
- -55 to 105°C Temperature range
- 55/105/56/B Climatic category
Applications
RF Communications
Product details
| Dielectric Type | Metallized PP |
| Capacitance | 0.47µF |
| Suppression Class | X2 |
| Voltage Rating X | 275VAC |
| dv/dt Rating | 100V/µs |
| Lead Spacing | 15mm |
| Operating Temperature Max | 105°C |
| Qualification | - |
| Capacitor Case / Package | Radial Box - 2 Pin |
| Capacitance Tolerance | ± 20% |
| Capacitor Mounting | Through Hole |
| Voltage Rating Y | - |
| Humidity Rating | GRADE II (Test Condition A) |
| Operating Temperature Min | -55°C |
| Product Range | PHE840M/F840 Series |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | KEMET |
| Part Number | PHE840MB6470MB16R17 |
| Quantity | Each |
| EOL Notices (1012.81KB) EN | View or download |
| Product Change Notice (267.37KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
