| ₹ 531.99 includes GST and import duties. | |
| B2B customers can avail ₹ 81.13 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview
The C3D06060F is a Z-Rec™ silicon carbide Schottky Diode features extremely fast switching, high-frequency operation and temperature-independent switching behaviour. It is used in switch mode power supplies and power factor correction.
- 600V Schottky rectifier
- Zero forward recovery voltage
- Zero reverse recovery current
- Positive temperature coefficient on VF
- Replace bipolar with unipolar rectifiers
- Essentially no switching losses
- Higher efficiency
- Reduction of heat sink requirements
- Parallel devices without thermal runaway
Applications
Industrial
Product details
| Product Range | Z-Rec 600V |
| Repetitive Peak Reverse Voltage | 600V |
| Total Capacitive Charge | 16nC |
| No. of Pins | 2 Pin |
| Diode Mounting | Through Hole |
| Diode Configuration | Single |
| Average Forward Current | 7A |
| Diode Case Style | TO-220-F2 |
| Operating Temperature Max | 175°C |
| Qualification | - |
Other details
| Brand | WOLFSPEED |
| Part Number | C3D06060F |
| Quantity | Each |
| Technical Data Sheet (809.96KB) EN | View or download |
| Product Change Notice (285.59KB) EN | View or download |

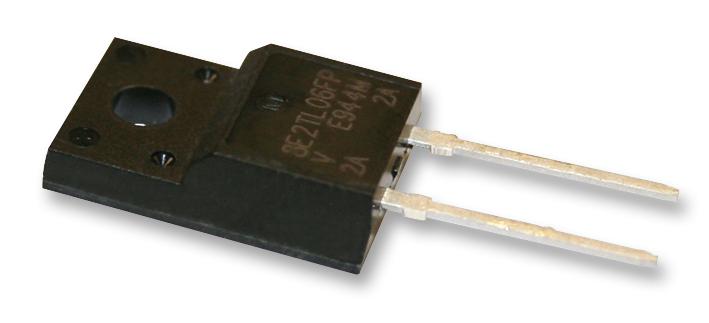

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 521.35 |
| 3-5 | ₹ 516.03 |
| 5-10 | ₹ 505.39 |
| 10+ | ₹ 494.75 |
Bulk discount will be automatically applied during checkout based on quantity.
