Description
Product Overview
The STQ1NK80ZR-AP is a SuperMESH™ N-channel Power MOSFET offers Zener-protection and minimized gate charge. The SuperMESH™ is obtained through an extreme optimization of ST's well established strip-based PowerMESH™ layout. In addition to pushing ON-resistance significantly down, special care is taken to ensure a very good dV/dt capability for the most demanding applications. This MOSFET complements ST full range of high voltage Power MOSFETs including revolutionary MDmesh™ products.
- 100% Avalanche tested
- Extremely high dV/dt capability
- New high voltage benchmark
Applications
Industrial, Power Management
Product details
| Channel Type | N Channel |
| Continuous Drain Current Id | 300mA |
| Transistor Case Style | TO-92 |
| Rds(on) Test Voltage | 10V |
| Power Dissipation | 3W |
| Operating Temperature Max | 150°C |
| Qualification | - |
| SVHC | No SVHC (25-Jun-2025) |
| Drain Source Voltage Vds | 800V |
| Drain Source On State Resistance | 16ohm |
| Transistor Mounting | Through Hole |
| Gate Source Threshold Voltage Max | 3.75V |
| No. of Pins | 3Pins |
| Product Range | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STQ1NK80ZR-AP |
| Quantity | Each |
| Product Change Notice (119.25KB) EN | View or download |
| Technical Data Sheet (601.04KB) EN | View or download |

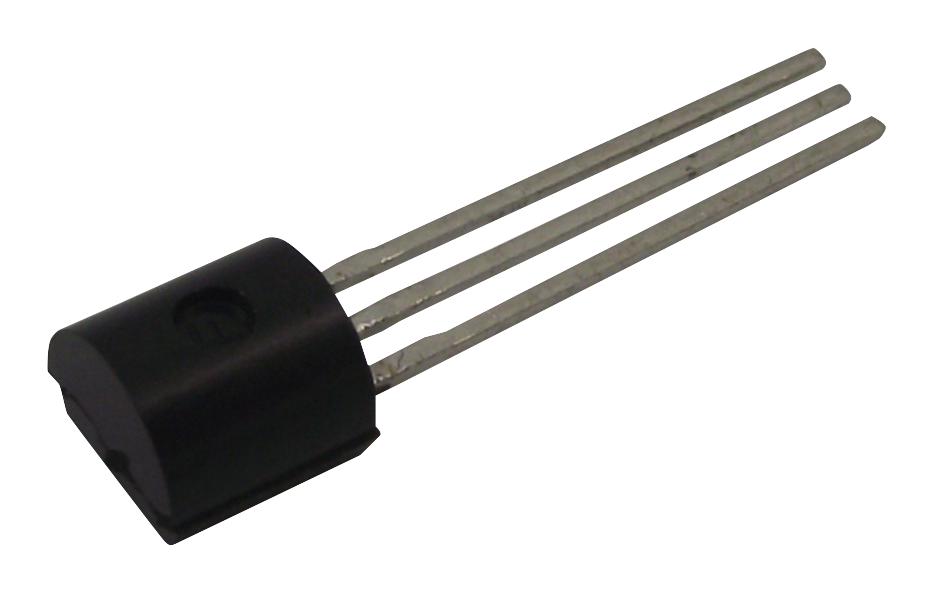

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
